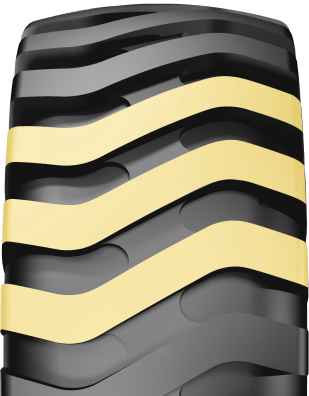

Designed for earthmover applications. Delivers outstanding grip in construction sites thanks to its non-directional tread pattern design. The tread compound improves cut and chip resistance. Offers ultimate durability thanks to solid tread center structure and strong nylon carcass.
It delivers outstanding gripping in construction sites thanks to its non-directional tread pattern design.
The tread compound provides cut and chip resistance.
High durability thanks to solid tread center structure and strong nylon carcass.
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | ||||||||||||
| 15 | 20 | 25 | 30 | 35 | 40 | 50 | ||||||||||||
| EM744 | 16.00-25 | 32 | TL | 177 / B | 11.25/2.0 | 11.25/2.0 IF (2) ; 13.00/2.0 | 1493 | 432 | 670 | 4330 | 94 | 8175 | 8030 | 7885 | 7740 | 7595 | 7520 | 7300 |
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | ||||||||||||
| 15 | 20 | 25 | 30 | 35 | 40 | 50 | ||||||||||||
| EM754 | 18.00-25 | 32 | TL | 183/ B | 13.00/2.5 | 13.00(2.5 IF (2) ; 15.00/2.5 | 1615 | 498 | 719 | 4684 | 83 | 9800 | 9625 | 9450 | 9275 | 9100 | 9015 | 8750 |
| EM756 | 18.00-25 | 40 | TL | 187/ B | 13.00/2.5 | 13.00(2.5 IF (2) ; 15.00/2.5 | 1615 | 498 | 719 | 4684 | 102 | 10920 | 10725 | 10530 | 10335 | 10140 | 10045 | 9750 |
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | |||||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | ||||||||||||
| 15 | 20 | 25 | 30 | 35 | 40 | 50 | ||||||||||||
| EM762 | 18.00-33 | 32 | TL | 188/ B | 13.00/2.5 | - | 1818 | 498 | 821 | 5272 | 83 | 11200 | 11000 | 10800 | 10600 | 10400 | 10300 | 10000 |
| EM763 | 18.00-33 - free axle | 40 | TL | 214 / A5 | 13.00 | 13.00/2.5 | 1818 | 498 | 821 | 5272 | 145 | 22048 | 21624 | 21200 | 20564 | - | - | - |
| EM763 | 18.00-33 -drive axle | 40 | TL | 214 / A5 | 13.00 | 13.00/2.5 | 1818 | 498 | 821 | 5272 | 145 | 27560 | 26924 | 26500 | 25864 | - | - | - |
