INDUSTRIAL & OTR TIRES

SM-I30

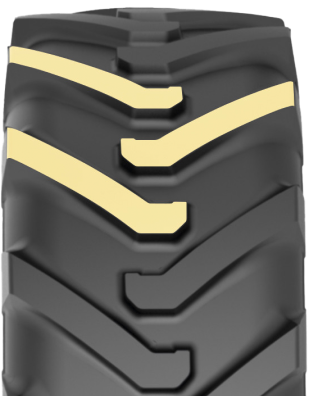

SM-I30 is an R-4 pattern designed to provide ultimate traction and durability for compact loaders, backhoe loaders and telehandlers. Wide and deep lugs are purposefully located to maximize traction on challenging terrains and ensure maximum durability against cuts and damages. Guarantees consistent performance throughout the tire’s long lifespan with wide tread profile that improves the tire’s resistance against irregular wear. The number and angles of undertread plies are specifically determined to improve lateral stability.

SM-I30

TECHNICAL HIGHLIGHTS

  • Wide and deep lugs are purposefully located to maximize traction on challenging terrains and ensure maximum durability against cuts and damages

  • The number and angles of undertread plies are specifically determined to improve lateral stability.

  • SM-I30

    ALL SIZES

    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 15 20 25 30 40
    MP264 16.0/70-20 16 TL 156 / A8 13 12SDC ; 13SDC ; 14 1075 418 495 3103 58 5000 4520 4360 4240 4160 4000
