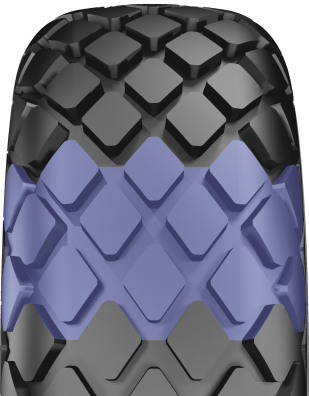

SM-S2 (R3) is specially designed for compactors applications. Delivers high impact resistance when used in paving applications. Offers outstanding longevity thanks to its strong carcass structure.
Thanks to its strong carcass structure it offers longevity.
| MANUFACTURER CODE | TIRE SIZE | PR | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | ||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC RADIUS CIRCLE (MM) | SPEED (KM/H) | |||||||
| 40 km/h | 50 km/h | ||||||||||||
| FT760 | 23.1-26 | 12 | TL | 162 / A8 | DW20 | - | 1580 | 587 | 708 | 4582 | 28 | 4750 | 4325 |
| N/A | 23.1-26* | 10 | TT | 158 / A8 | DW20 | - | 1580 | 587 | 708 | 4582 | 25 | 4250 | 3870 |
| FT761 | 23.1-26 | 14 | TL | 166 / A8 | DW20 | - | 1580 | 587 | 708 | 4582 | 28 | 5300 | 4825 |
*Upon Request
