StxRD22 (G2) is an all steel radial tire that promises resistance to tears and wears in worksites and on challenging roads. Specially formulated tread compound and all steel carcass structure of StxRD22 (G-2) offer longevity. The non-directional pattern design delivers outstanding traction and grip in demanding conditions. StxRD22 (G-2) is an all steel tire designed for grader applications.

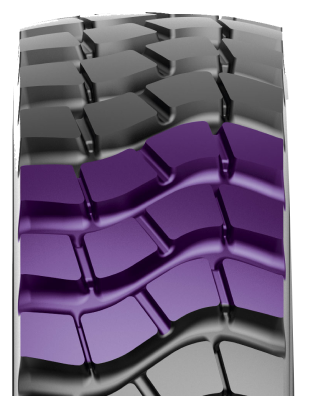

The non-directional pattern design delivers outstanding traction and grip in demanding conditions.
Specially formulated tread compound and all steel carcass structure offers longevity.
| MANUFACTURER CODE | TIRE SIZE | STAR RATING | TT/TL | LOAD / SPEED INDEX | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE(KG) | ||||||
| RECOM.(INCHES) | PERMITTED (INCHES) | OUTER DIAMETER (MM) | SECTION WIDTH MIN-MAX | STATIC LOADED RADIUS (MM) | DYNAMIC ROLLING CIRCUMFERENCE (MM) | SPEED (KM/H) | |||||||||
| 20 | 30 | 40 | 50 | ||||||||||||
| LR201 | 14.00 R24 | tek | TL | 153 / A8 | 8.00 TG SDC | 9.00/1.5 (DC) ; 10.00/VA SDC | 1348 | 364 | 608 | 3909 | 54 | 3650 | 3650 | 3650 | 3322 |
