SM / 250
This tire is a powerful traction type for pickups – minibus with long life.
Overview

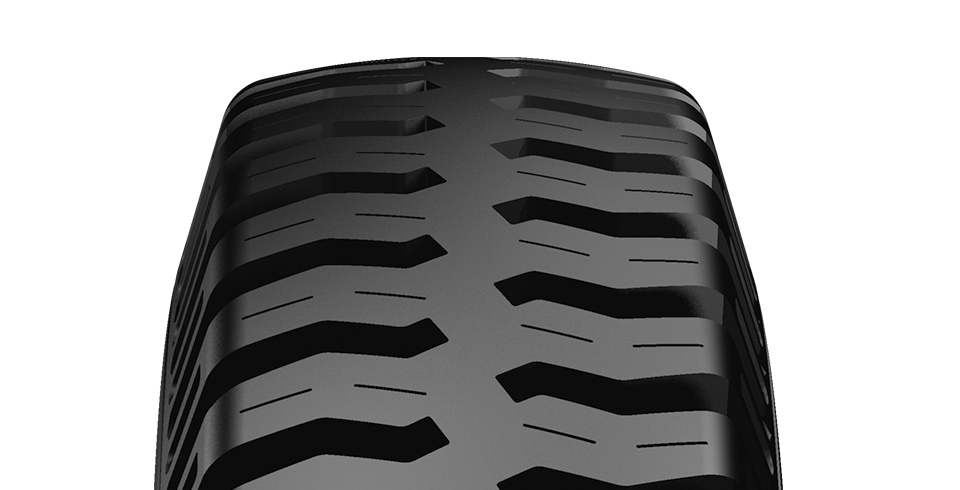

SM250
Traction type tire with heavy load capacity for short distance
roads.High resistance against cuts and wears with special deep
geometry design. Durable nylon carcass structure.
Properties
Pattern Properties
All Sizes
SM / 250
| TIRE SIZE | PR | LOAD INDEX | SPEED SYMBOL | LOAD CAPACITY (kg) | SPEED LIMIT (km/h) | INFLATING PRESSURE (LB/IN2) | RIM | INFLATED DIMENSIONS | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 wheeled maximum load per axle (kg) | 4 wheeled maximum load per axle (kg) | RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | ||||||
| 6.50-16C | 10 | 108/107 | L | 2000 | 3900 | 120 | 73 | 4.50 E SDC 4 ½J, 4½K | 5.00 E SDC, 5K, 5.50F SDC, 5½K, 6L | 176 | 748 |
| 7.50-15C | 10 | 114/112 | L | 2360 | 4480 | 120 | 76 | 6.0G | 5.50F, 6.50H | 212 | 772 |
