SM / 270
Overview

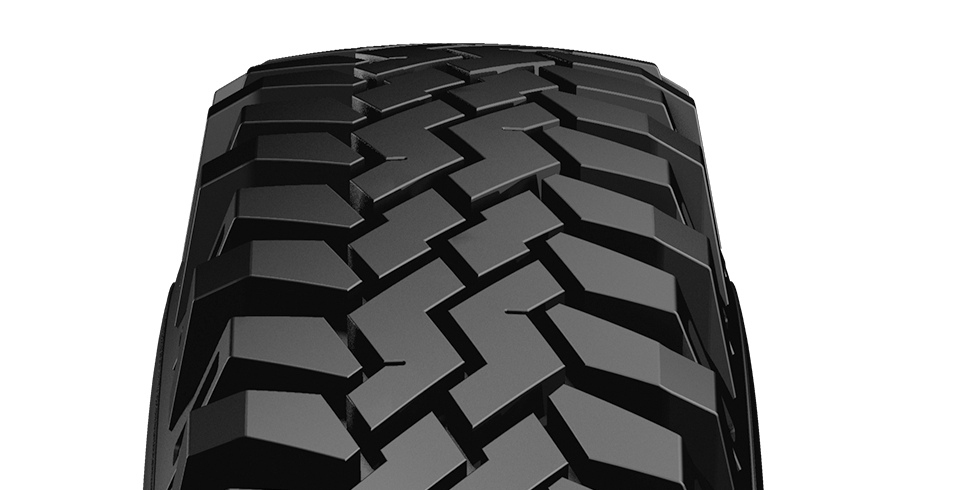

SM270
Traction type tire with heavy load capacity for short distance
roads. Durable nylon carcass structure provides longevity. High
resistance against cuts and wears.
Properties
Pattern Properties
All Sizes
SM / 270
| TIRE SIZE | PR | LOAD INDEX | SPEED SYMBOL | LOAD CAPACITY (kg) | SPEED LIMIT (km/h) | INFLATING PRESSURE (LB/IN2) | RIM | INFLATED DIMENSIONS | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 wheeled maximum load per axle (kg) | 4 wheeled maximum load per axle (kg) | RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | ||||||
| 6.50-16C | 10 | 108/107 | L | 2000 | 3900 | 120 | 73 | 4.50 E SDC 4 ½J, 4½K | 5.00 E SDC, 5K, 5.50F SDC, 5½K, 6L | 176 | 748 |
| 7.50-16C | 12 | 121/120 | J | 2900 | 5600 | 100 | 94 | 6.0G SDC, 6L | 5.00 F SDC, 6.50F SDC, 6 ½L | 210 | 806 |
