SM / 400

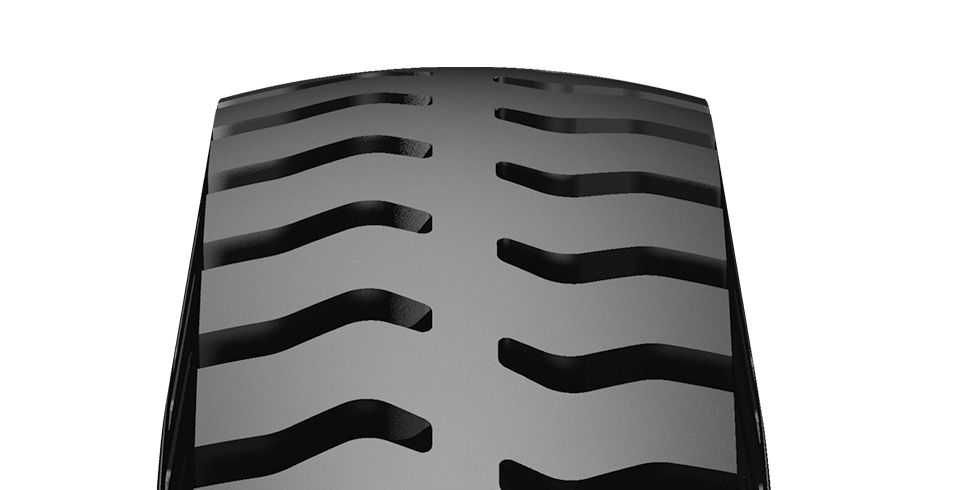

Bus – truck diagonal tire with wide base and modern tread pattern

SM

Overview

SM 400

SM 400 is a steer axle bias tire suitable to use in standart
conditions. Also higly resistant to cut and wears. Offers
longevity thanks to its strong carcass structure, tread geometry,
specially developed tread composition. PA40 provides
ultimate load capacity and self-cleaning

more
  • SM
  • SM
  • SM

Properties

SM

Pattern Properties

All Sizes

SM / 400

TIRE SIZEPRTT/TLLOAD INDEXSPEED SYMBOLLOAD CAPACITY (kg)SPEED LIMIT (km/h)INFLATING PRESSURE (psi)RIMINFLATED DIMENSIONS
2 wheeled maximum load per axle (kg)4 wheeled maximum load per axle (kg)RECOM. (INCHES)PERMITTED (INCHES)Section Width Min-MaxOUTER DIAMETER (MM)
9.00-2014TT140/137J500092001001057.0, B7.0, 7.0T6,00T, 6.5, B6.5, 6.5T, 7.33V, 7.5, B7.5, 7.5V2561023
10.00-2016TT146/143J6000109001001167.5, B7.5, 7.5V6,00T, 7.0, B7.0, 7.0T, 7.33V, 8.0, B8.0, 8.0V2751060
11.00-2016TT149/145J6500116001001198.0, B8.0, 8.0V7.33V, 7.5, B7.5, 7.5V, 8.37V 8.5, 135.5, 8.5V, 8.50V, 9.00V2911098
12.00-2018TT154/149J7500130001001238.5, B8.5, 8.5V7.33V, 8.0, 8.0V, B8.0, 8.37V 9.0, 9.0V, 9.00V3121135
12.00-2418TT156/153J8000146001001138.5, B8.5, 8.5V7.33V, 8.0, 8.0V, B8.0, 8.37V 9.0, 9.0V, 9.00V3121239
