SM / 5
Overview

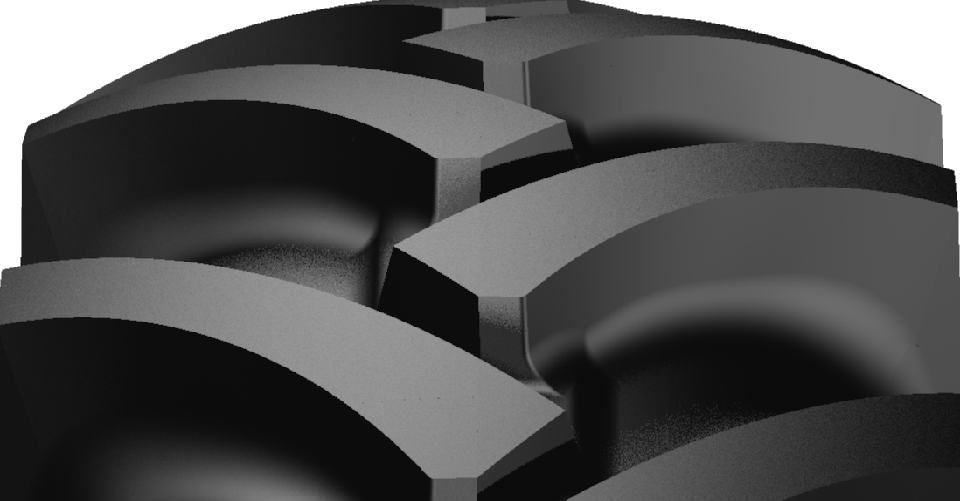

SM5 (R-1)
Thanks to its multi-purpose gum and rubber structure, designed
for small loaders with back-hoe, tele-handlers, and forestry
tractors. It is resistant to cuts, ruptures and cracks; and
provides a long driving life and a comfortable drive.
Properties
Pattern Properties
All Sizes
SM / 5
| TIRE SIZE | PR | TT/TL | LOAD INDEX | SPEED SYMBOL | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | TREAD DEPTH(MM) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE (KG) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | DYNAMIC RADIUS CIRCLE (MM) | STATIC LOADED RADIUS (MM) | Speed (KM/H) | ||||||||||||||||||
| 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | |||||||||||||
| 16.9-30 | 14 | TL | 153 | A8 | W15L | W14L | 429 | 1485 | 4307 | 677 | 39 | 42 | 5250 | 5000 | 4700 | 4450 | 4200 | 3650 | ||||||
| 18.4-26 | 14 | TL | 145 | A8 | W16L | W15L | 467 | 1450 | 4321 | 647 | 38 | 40 | 4060 | 3857 | 3654 | 3451 | 3248 | 2900 | ||||||
