SM / I25 R-4

Implement Tire

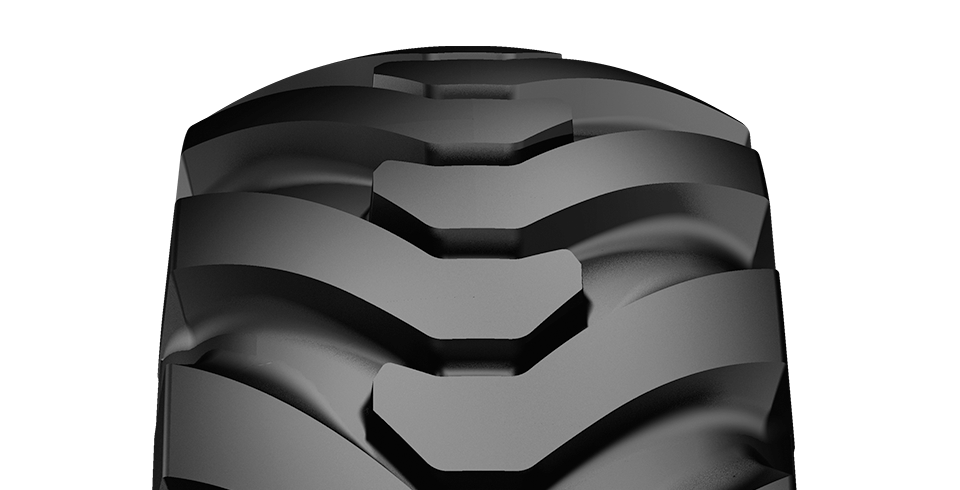

Tire Section
See All Sizes

Overview

SM125 (R-4)

Specially designed for backhoe and telehandler applications.
Offers ultimate resistance to cuts, tears, chips and chunks with its exceptional
tread compound and wide lugs. Strong carcass structure ensures longevity.

All Sizes

SM / I25 R-4

TIRE SIZE	PR	TT/TL	LOAD INDEX	SPEED SYMBOL	RIM		INFLATED DIMENSIONS (NO LOAD)		INFLATED DIMENSIONS (W/LOAD)		TREAD DEPTH(MM)	INFLATING PRESSURE (psi)	LOAD CAPACITY PER TIRE (KG)
					RECOM. (INCHES)	PERMITTED (INCHES)	Section Width Min-Max	OUTER DIAMETER (MM)	DYNAMIC RADIUS CIRCLE (MM)	STATIC LOADED RADIUS (MM)			Speed (KM/H)
					RECOM. (INCHES)	PERMITTED (INCHES)	Section Width Min-Max	OUTER DIAMETER (MM)	DYNAMIC RADIUS CIRCLE (MM)	STATIC LOADED RADIUS (MM)			10	15	20	25	30	35	40	45	50	55	60	65
12.5/80-18	12	TL	142	A8	W9	11.00	308	987	2862	446	27	54	3315	2995	2890	2810	2755		2650		2385
12.5/80-18	14	TL	146	A8	W9	11.00	308	987	2862	446	27	62	3750	3390	3270	3180	3120		3000		2700
14.5-20	14	TT	143	D	11	11 SDC	355	1095	3176	495	28	51	4495	4085	3545	3350	3135		2890		2835			2725
14.5-20	14	TL	143	D	11	11 SDC	355	1095	3176	495	28	51	4495	4085	3545	3350	3135		2890		2835			2725
16.0/70-20	14	TL	154	A8	13	12 SDC, 13 SDC, 14	418	1075	3103	495	33	51	4690	4240	4090	3975	3900		3750		3375
16.0/70-20	14	TL	156	A8	13	12 SDC, 13 SDC, 14	418	1075	3103	495	33	58	5000	4520	4360	4240	4160		4000		3600
16.0/70-24	14	TL	152	B	13.00	13 (DC) - 13 (SDC)	407	1178	3405	542	34	51		3975	3905	3835	3765		3655		3550
16.5/85-24	12	TL	149	A8	W13L	W15L ;W14L	417	1322	3834	597	30	41	4065	3675	3545	3445	3380		3250		2925
16.5/85-24	16	TL	156	A8	W13L	W15L ;W14L	417	1322	3834	597	30	54	5000	4520	4360	4240	4160		4000		3600
16.9-24	12	TL	149	A8	DW15L	DW14L	429	1310	3799	592	30	38	4065	3675	3545	3445	3380		3250		2925
16.9-24	14	TL	152	A8	DW15L	DW14L	429	1310	3799	592	30	43	4440	4010	3870	3760	3690		3550		3195
16.9-28	12	TT	152	A8	DW15L	DW14L	429	1410	4089	643	30	38	4440	4012	3870	3765	3690		3550		3195
16.9-28	12	TL	152	A8	DW15L	DW14L	429	1410	4089	643	30	38	4440	4012	3870	3765	3690		3550		3195
16.9-28	14	TL	156	A8	DW15L	DW14L	429	1410	4089	643	30	44	5000	4520	4360	4220	4160		4000		3600
18.4-26	12	TL	156	A8	DW16L	DW15L	467	1425	4133	644	32	36	5000	4520	4360	4240	4160		4000		3600
18.4-26	14	TL	158	A8	DW16L	DW15L	467	1425	4133	644	32	42	5310	4800	4630	4505	4420		4250		3825
18.4-26	16	TL	160	A8	DW16L	DW15L	467	1425	4133	644	32	48	5625	5085	4905	4770	4680		4500		4050
19.5L-24	12	TL	151	A8	DW16A		495	1314	3810	594	29	34	4315	3890	3760	3655	3590		3450		3105
340/80-18	12	TL	142	A8	11	W10;W11	343	1001	2903	452	27	54	3315	2995	2890	2810	2755		2650		2385
405/70-20	16	TL	154	A8	13	12SDC ; 13SDC ; 14	418	1075	3103	495	33	51	4690	4240	4090	3975	3900		3750		3375
405/70-24	14	TL	152	B	13.00	13 (DC) - 13 (SDC)	407	1178	3405	542	34	51		3975	3905	3835	3765		3655		3550
440/80-24	12	TL	149	A8	DW14L	DW13;DW13L;DW15L	441	1314	3810	594	30	38	4065	3675	3545	3445	3380		3250		2925
440/80-28	12	TL	152	A8	DW14L	DW13;DW13L;DW15L	441	1415	4104	645	30	38	4440	4012	3870	3765	3690		3550		3195
480/80-26	14	TL	158	A8	DW15L	DW16L	479	1428	4141	647	32	42	5310	4800	4630	4505	4420	-	4250		3825
