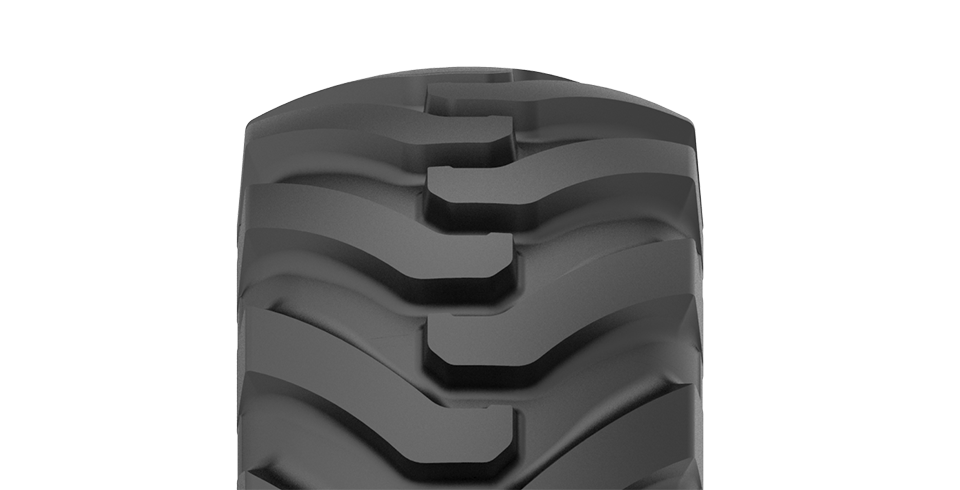

SM-I30 is an R-4 pattern designed to provide ultimate traction and durability for compact loaders, backhoe loaders and telehandlers. Wide and deep lugs are purposefully located to maximize traction on challenging terrains and ensure maximum durability against cuts and damages. Guarantees consistent performance throughout the tire’s long lifespan with wide tread profile that improves the tire’s resistance against irregular wear. The number and angles of undertread plies are specifically determined to improve lateral stability.
SM-I30 / (R-4)
|TIRE SIZE||PR||TT/TL||LOAD INDEX||SPEED SYMBOL||RIM||INFLATED DIMENSIONS (NO LOAD)||INFLATED DIMENSIONS (W/LOAD)||TREAD DEPTH(MM)||INFLATING PRESSURE (psi)||LOAD CAPACITY PER TIRE (KG)|
|RECOM. (INCHES)||PERMITTED (INCHES)||Section Width Min-Max||OUTER DIAMETER (MM)||DYNAMIC RADIUS CIRCLE (MM)||STATIC LOADED RADIUS (MM)||Speed (KM/H)|
|16.00/70-20||16||TL||156||A8||13||12SDC ; 13SDC ; 14||418||1075||3103||495||-||58||5000||4520||4360||4240||4160||-||4000|
