SM / ND

Implement Tire

SM

Overview

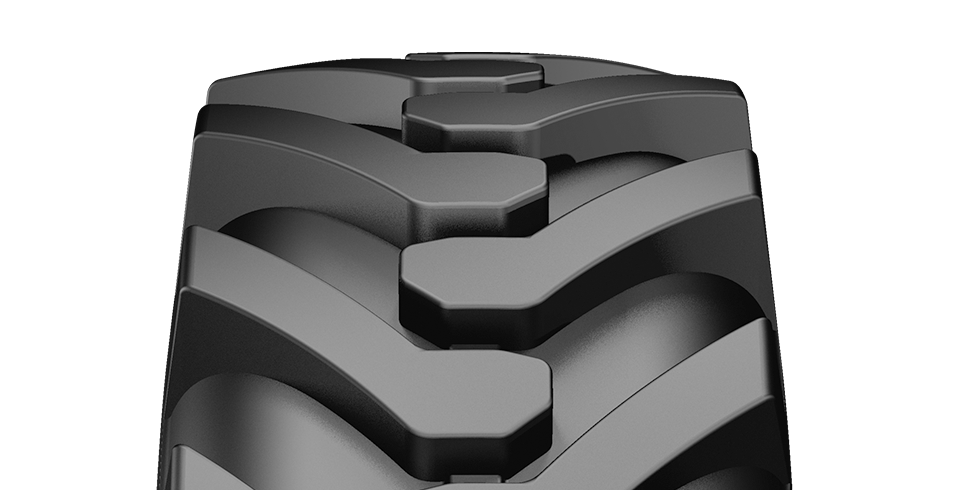

SM ND (R-4)

Designed for general purpose use in construction applications. Delivers
exceptional traction thanks to its directional pattern design and robust
lugs. Strong carcass structure enhances resistance to cuts, tears and wears.
Offers outstanding cost efficiency.

more
  • SM
  • SM
  • SM

Properties

SM

Pattern Properties

All Sizes

SM / ND

TIRE SIZEPRTT/TLLOAD INDEXSPEED SYMBOLRIMINFLATED DIMENSIONS (NO LOAD)INFLATED DIMENSIONS (W/LOAD)TREAD DEPTH(MM)INFLATING PRESSURE (psi)LOAD CAPACITY PER TIRE (KG)
RECOM. (INCHES)PERMITTED (INCHES)Section Width Min-MaxOUTER DIAMETER (MM)DYNAMIC RADIUS CIRCLE (MM)STATIC LOADED RADIUS (MM)Speed (KM/H)
101520253035404550556065
16/70-2010TT147A81312SDC;13SDC;14418109731814963151384534753350326032003075
10-16.5NHS8TL131A38,25-2647732242356175420901950179516601520
10.0/75-15.312TL126A89.00-26478022623551968212519201850180017701700
10.5/80-1812TL134A8W9W8 ;9.0027490726304132054265023952310224522052120
11.5/80-15.312TL135A89.00-29086725143901959272524602375231022652180
12-16.5NHS10TL142A39,75-3078312410378196528352650244022552065
12.5/80-1812TL142A8W911.0030898728624462754331529952890281027552650
14.5-2014TT143D1111 SDC35510953176495285144954085354533503135289028352725
14.5-2014TL143D1111 SDC35510953176495285144954085354533503135289028352725
16.0/70-2014TL154A81312SDC ;13SDC ;14418109731814963151469042404090397539003750
16.0/70-2414TL152B13.0013 SDC407117834165383251 (LOADING)5800-----------
16.5/85-2812TL152A8W13LW14L ;W15L417142341276482738444040103434376036903150
16.9-2812TT152A8DW15LDW14L 429141040896432738444040103870376036903550
16.9-2812TL152A8DW15LDW14L429141040896432738444040103870376036903550
18.4-2612TL156A8DW16LDW15L467142541336442736500045204360424041604000
18.4-2614TL158A8DW16LDW15L467142541336442742531048004630450544204250
23.1-2612TL162A8DW20B-587158045827083928594053705180503549404750
23.1-2612TT162A8DW20B-587158045827083928594053705180503549404750
23.1-2614TL166A8DW20B-587158045827083930656059305720556554605250
280/80-1812TL 134A8W9W8;W1028290526254122054265023952310224522052120
405/70-2010TT 147A81312SDC ;13SDC ;14418109731814963151384534753350326032003075
405/70-2014TL154A81312SDC ;13SDC ;14418109731814963151469042404090397539003750
405/70-2414TL152B13.0013 SDC407117834165383251 (Transport)--------3550---
405/70-2414TL152B13.0013 SDC407117834165383265 (Loading)5800-----------
480/80-2612TL 156A8DW15LDW16L479142841416452736500045204360424041604000
