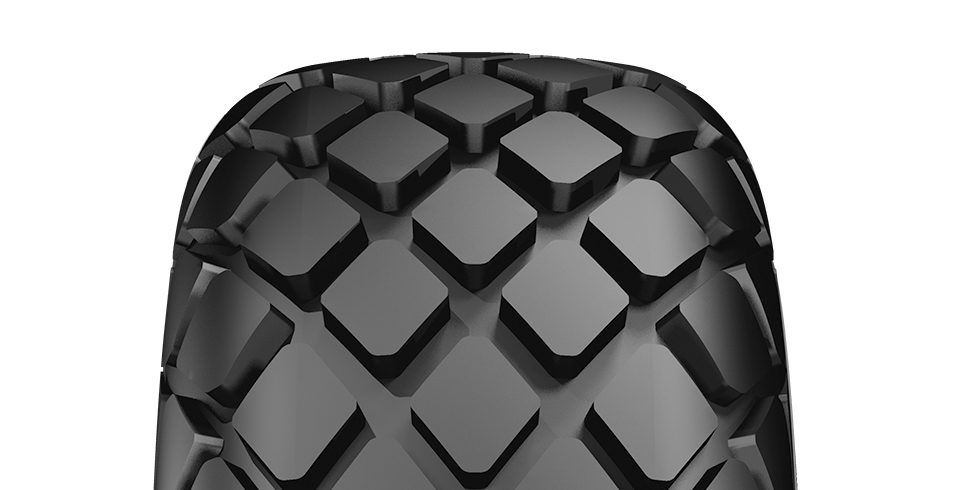

SM / S2
Compactor Tire
Overview
SMS2
SMS2 is specially designed for compactors applications. Delivers high
impact resistance when used in paving applications. Offers outstanding
longevity thanks to its strong carcass structure.
Properties
Pattern Properties
All Sizes
SM / S2
| TIRE SIZE | PR | TT/TL | LOAD INDEX | SPEED SYMBOL | RIM | INFLATED DIMENSIONS (NO LOAD) | INFLATED DIMENSIONS (W/LOAD) | TREAD DEPTH(MM) | INFLATING PRESSURE (psi) | LOAD CAPACITY PER TIRE (KG) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RECOM. (INCHES) | PERMITTED (INCHES) | Section Width Min-Max | OUTER DIAMETER (MM) | DYNAMIC RADIUS CIRCLE (MM) | STATIC LOADED RADIUS (MM) | Speed (KM/H) | ||||||||||||||||||
| 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | |||||||||||||
| 23.1-26 | 14 | TL | 166 | A8 | DW20 | 587 | 1580 | 4582 | 708 | 27 | 28 | 5300 | 4825 | |||||||||||
| 23.1-26 | 10 | TT | 158 | A8 | DW20 | - | 587 | 1580 | 4582 | 708 | 27 | 25 | 4250 | 3870 | ||||||||||
| 23.1-26 | 12 | TL | 162 | A8 | DW20 | - | 587 | 1580 | 4582 | 708 | 27 | 28 | 4750 | 4325 | ||||||||||
