SM60 / L-3

Midsize and large loader tire

SM60

Overview

(L-3)

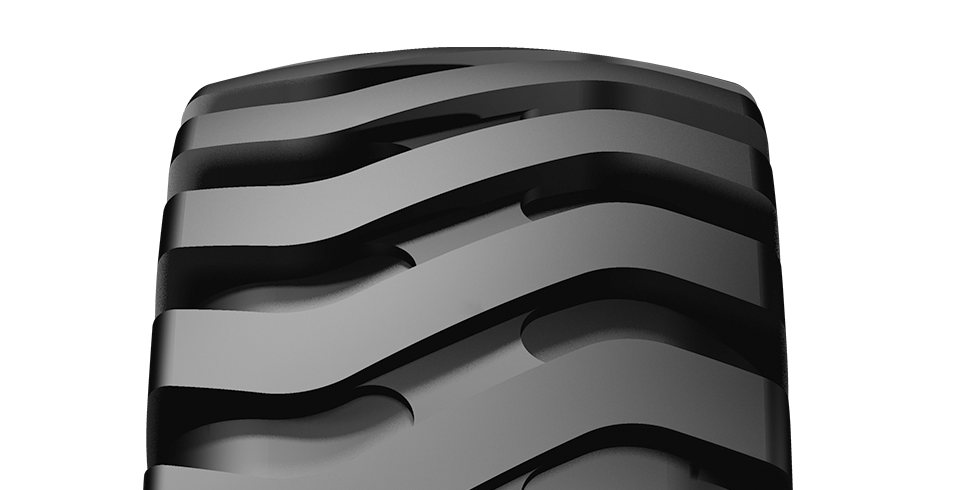

Delivers outstanding grip in construction sites thanks to its non-directional
tread pattern design. The tread compound ensures excellent cut and chip
resistance. Provides outstanding durability thanks to its solid tread center
structure and strong nylon carcass.

more
  • SM60
  • SM60
  • SM60

Properties

SM60

Pattern Properties

All Sizes

SM60 / L-3

TIRE SIZEPRTT/TLLOAD INDEXSPEED SYMBOLRIMINFLATED DIMENSIONS (NO LOAD)INFLATED DIMENSIONS (W/LOAD)TREAD DEPTH(MM)INFLATING PRESSURE (psi)LOAD CAPACITY PER TIRE (KG)LOAD CAPACITY PER TIRE (KG)
RECOM. (INCHES)PERMITTED (INCHES)Section Width Min-MaxOUTER DIAMETER (MM)DYNAMIC RADIUS CIRCLE (MM)STATIC LOADED RADIUS (MM)OFF ROAD PURPOSESHARD IMPROVED SURFACE
STATIC10 KM/H **25 KM/HSTATIC5 KM/H10 KM/H **
17.5-2516TL177A214.00/1.514.00/1.3 (1) ; 13.00/1.4 (DC)44513483909610266916K10K850018K14.513.5
17.5-2520TL181A214.00/1.514.00/1.3 (1) ; 13.00/1.4 (DC)44513483909610268313.282507010,0148511.911135
18.00-2532TL202A213.00/2.513.00(2.5 IF (2) ; 15.00/2.54981615468471934109240001500012750270002175020250
18.00-2540TL206A213.00/2.513.00(2.5 IF (2) ; 15.00/2.54981615468471934138272001700014450306002465022950
18.00-3332TL207A213.00/2.5-4981818527282137109280001750014875315002537523625
18.00-3336TL209A213.00/2.5-4981818527282137123296001850015725333002682524975
20.5-2516TL181A217.00/2.017.00/2.0 IF (2)52014924327669305113200,082507010,014850,011960,011135
20.5-2520TL186A217.00/2.017.00/2.0 IF (2)5201492432766930651520095008075171001377512825
23.5-2520TL191A219.50/2.519.50/2.5 IF (2)59716174689720355417440109009265196201580514715
23.5-2524TL196A219.50/2.519.50/2.5 IF (2)597161746897203569200001250010625225001812516875
26.5-2528TL203A222.00/3.022.00/3.0 IF (2)673175050757753969248001550013175279002247520925
26.5-2532TL206A222.00/3.022.00/3.0 IF (2)673175050757753980272001700014450306002465022950
29.5-2528TL207A225.00/3.525.00/3.5 IF (2)750187354328254462280001750014875315002537523625
29.5-2532TL210A225.00/3.525.00/3.5 IF7501873543282544
