SM70 / L-3

Strong loader-dozer design

SM70

Overview

(L-3)

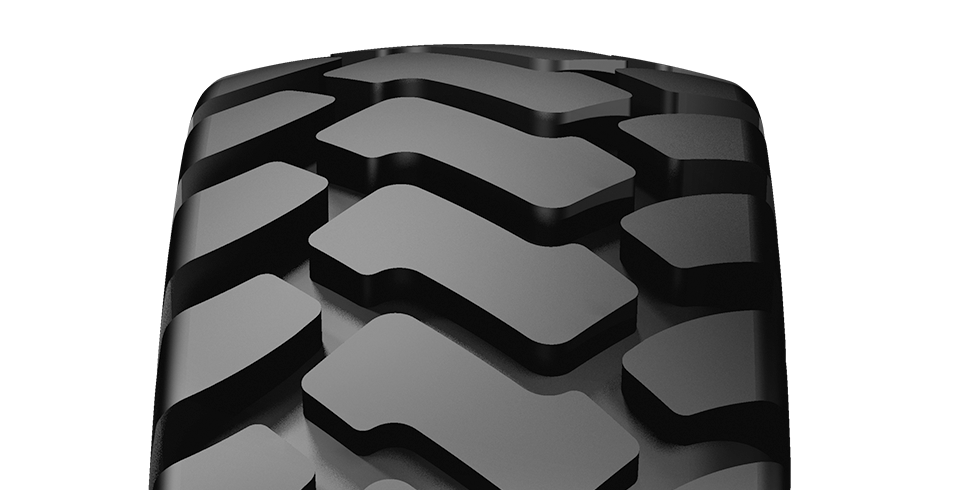

Delivers optimized performance on all terrains. The special compound and
aggressive design of the tread pattern enhances handling throughout its
exceptionally long life. Provides outstanding resistance to cuts and wears.
Specifically designed to offer ultimate performance when excellent traction
is needed.

more
  • SM70
  • SM70
  • SM70

Properties

SM70

Pattern Properties

All Sizes

SM70 / L-3

TIRE SIZEPRTT/TLLOAD INDEXSPEED SYMBOLRIMINFLATED DIMENSIONS (NO LOAD)INFLATED DIMENSIONS (W/LOAD)TREAD DEPTH(MM)INFLATING PRESSURE (psi)LOAD CAPACITY PER TIRE (KG)LOAD CAPACITY PER TIRE (KG)
RECOM. (INCHES)PERMITTED (INCHES)Section Width Min-MaxOUTER DIAMETER (MM)DYNAMIC RADIUS CIRCLE (MM)STATIC LOADED RADIUS (MM)OFF ROAD PURPOSESHARD IMPROVED SURFACE
STATIC10 KM/H **25 KM/HSTATIC5 KM/H10 KM/H **
15.5-2512TL168A212.00/1.312.00/1.3 (DC)(1)39412773703581255889605600476010K81207560
17.5-2516TL181A214.00/1.514.00/1.3(1) ; 13.00/1.4(DC)445134839096102683469042404090397539003750
17.5-2520TL181A214.00/1.514.00/1.3 (1) ; 13.00/1.4 (DC)4451348390961026831320082507010148501196011135
20.5-2516TL181A217.00/2.017.00/2.0 IF (2)5201492432766930511320082507010148501196011135
20.5-2520TL186A217.00/2.017.00/2.0 IF (2)5201492432766935651520095008075171001377512825
23.5-2520TL191A219.50/2.519.50/2.5 IF (2)59716174689720355417440109009265196201580514715
23.5-2524TL196A219.50/2.519.50/2.5 IF (2)597161746897203969200001250010625225001812516875
26.5-2528TL203A222.00/3.022.00/3.0 IF (2)673175050757753969248001550013175279002247520925
26.5-2532TL206A222.00/3.022.00/3.0 IF (2)673175050757754480272001700014450306002465022950
29.5-2528TL207A225.00/3.525.00/3.5 IF (2)750187354328254476280001750014875315002537523625
