    LOADER

    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		OFF ROAD PURPOSES HARD IMPROVED SURFACE
    SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD310
    		17.5-25
    		12 TL 171 / A2 14.00/1.5 14.00/1.3 (1) ; 13.00/1.4 (DC) 1348 445 610 3909 51 9840 6150 5230 11070 8920 8305
    LD313
    		17.5-25
    		16 TT 177 / A2 14.00/1.5 14.00/1.3 (1) ; 13.00/1.4 (DC) 1348 445 610 3909 69 11680 7300 6205 13140 10585 9855
    LD314
    		17.5-25
    		16 TL 177 / A2 14.00/1.5 14.00/1.3 (1) ; 13.00/1.4 (DC) 1348 445 610 3909 69 11680 7300 6205 13140 10585 9855
    LD316
    		17.5-25
    		20 TL 181 / A2 14.00/1.5 14.00/1.3 (1) ; 13.00/1.4 (DC) 1348 445 610 3909 83 13200 8250 7015 14850 11965 11140
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		OFF ROAD PURPOSES HARD IMPROVED SURFACE
    SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    N/A
    		20.5-25 *
    		16 TL 181 / A2 17.00/1.7 17.00/2.0 IF (2) 1492 520 669 4327 51 13200 8250 7015 14850 11965 11140
    N/A
    		20.5-25 *
    		20 TL 186 / A2 17.00/1.7 17.00/2.0 IF (2) 1492 520 669 4327 65 15200 9500 8075 17100 13775 12825
    N/A
    		20.5-25 *
    		24 TL 196 / A2 17.00/1.7 17.00/2.0 IF (2) 1492 520 669 4327 76 16480
    		10300
    		8755
    		18540
    		14935
    		13905


    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) OFF ROAD PURPOSES HARD IMPROVED SURFACE
    SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    N/A 23.5-25 * 20 TL 191 / A2 19.50/2.5 19.50/2.5 IF (2) 1617 597 720 4689 54 17440 10900 9265 19620 15805 14715
    N/A 23.5-25 * 24 TL 196 / A2 19.50/2.5 19.50/2.5 IF (2) 1617 597 720 4689 69 20000 12500 10625 22500 18125 16875


    * Upon Request

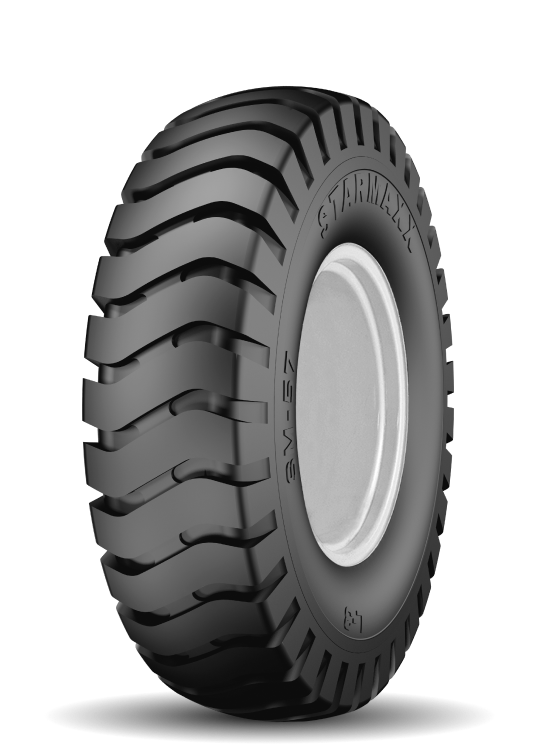

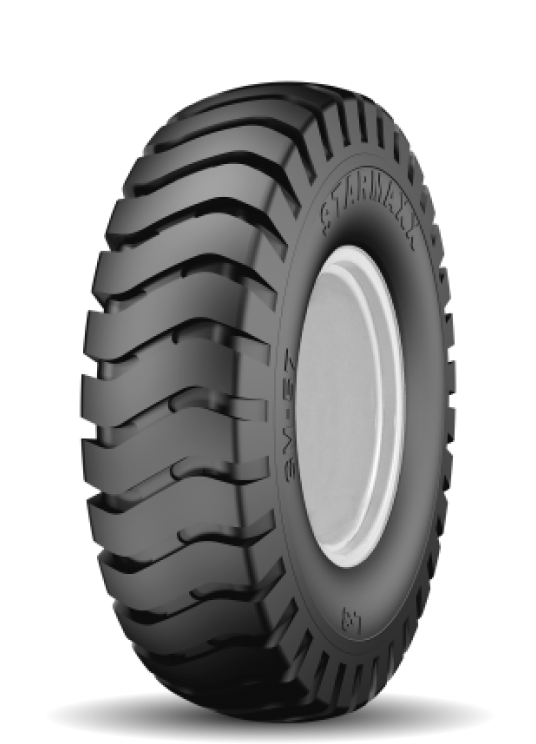

    SM-57 (L3)

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		OFF ROAD PURPOSES HARD IMPROVED SURFACE
    SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD332
    		17.5-25
    		16 TL 177 / A2 14.00/1.5 14.00/1.3 (1) ; 13.00/1.4 (DC) 1348 445 610 3909 62 11680
    		7300
    		6205
    		13140
    		10585

    9855


    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		OFF ROAD PURPOSES HARD IMPROVED SURFACE
    SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD432
    		20.5-25 20 TL 186/ A2 17.00/2.0 17.00/2.0 IF (2) 1492 520 669 4327 65 15200 9500 8075 17100 13775 12825
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		OFF ROAD PURPOSES HARD IMPROVED SURFACE
    SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD530
    		23.5-25 20 TL 191/ A2 19.50/2.5 19.50/2.5 IF (2) 1617 597 720 4689 54 17440 10900 9265 19620 15805 14715
    LD532
    		23.5-25
    		24 TL 196/ A2 19.50/2.5 19.50/2.5 IF (2) 1617 597 720 4689 69 20000 12500 10625 22500 18125 16875
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		OFF ROAD PURPOSES HARD IMPROVED SURFACE
    SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD635
    		26.5-25 28 TL 203/ A2 22.00/3.0 22.00/3.0 IF (2) 1750 673 775 5075 69 24800 15500 13175 27900 22475 20925
    LD637
    		26.5-25
    		32 TL 206/ A2 22.00/3.0 22.00/3.0 IF (2) 1750 673 775 5075 80 27200 17000 14450 30600 24650 22950
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		OFF ROAD PURPOSES HARD IMPROVED SURFACE
    SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD732
    		29.5-25 28 TL 207/ A2 25.00/3.5 25.00/3.5 IF (2) 1873 750 825 5432 62 28000 17500 14875 31500 25375 23625
    LD734
    		29.5-25
    		32 TL 210/ A2 25.00/3.5 25.00/3.5 IF (2) 1873 750 825 5432 69 30400 19000 16150 34200 27550 25650
    LD735 29.5-25
    		34 TL
    		212/ A2
    		25.00/3.5 25.00/3.5 IF (2)
    		1845
    		750
    		825 5479 76 32000
    		20000
    		17000 36000
    		29000
    		27000

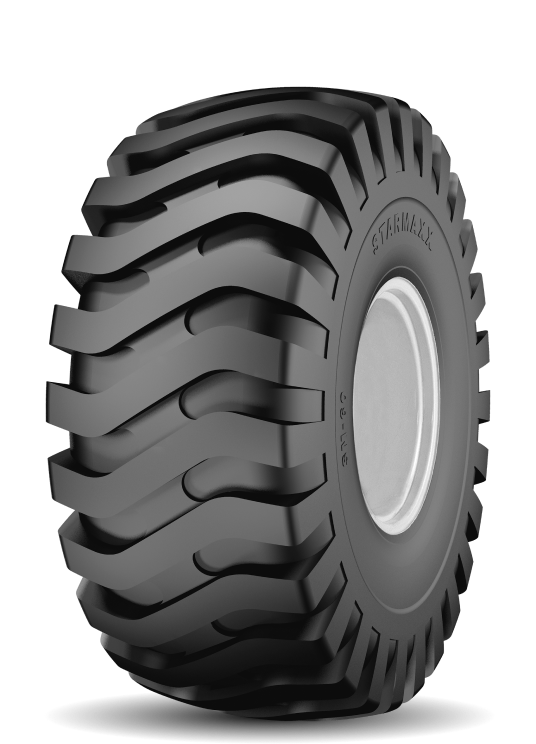

    SM-60 (L3)

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    OFF ROAD PURPOSES HARD IMPROVED SURFACE
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD260
    		15.5-25
    		12 TL 168 / A2 12.00/1.3 12.00/1.3 (DC)(1) 1277 394 581 3703 58 8960 5600 4760 10080 8120 7560
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    OFF ROAD PURPOSES HARD IMPROVED SURFACE
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)) SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD362
    		17.5-25
    		16 TL 177 / A2 14.00/1.5 14.00/1.3 (1) ; 13.00/1.4 (DC) 1348 445 610 3909 69 11680 7300 6205 13140 10585 9855
    LD364
    		17.5-25
    		20 TL 181 / A2 14.00/1.5 14.00/1.3 (1) ; 13.00/1.4 (DC) 1348 445 610 3909 83 13200 8250 7010 14850 11960 11135
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    OFF ROAD PURPOSES HARD IMPROVED SURFACE
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD462
    		20.5-25
    		20 TL 186 / A2 17.00/2.0 17.00/2.0 IF (2) 1492 520 669 4327 65 15200 9500 8075 17100 13775 12825
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    OFF ROAD PURPOSES HARD IMPROVED SURFACE
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD560
    		23.5-25
    		20 TL 191 / A2 19.50/2.5 19.50/2.5 IF (2) 1617 597 720 4689 54 17440 10900 9265 19620 15805 14715
    LD562
    		23.5-25
    		24 TL 196 / A2 19.50/2.5 19.50/2.5 IF (2) 1617 597 720 4689 69 20000 12500 10625 22500 18125 16875
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    OFF ROAD PURPOSES HARD IMPROVED SURFACE
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD663
    		26.5-25
    		28 TL 203 / A2 22.00/3.0 22.00/3.0 IF (2) 1750 673 775 5075 69 24800 15500 13175 27900 22475 20925
    LD665
    		26.5-25
    		32 TL 206 / A2 22.00/3.0 22.00/3.0 IF (2) 1750 673 775 5075 80 27200 17000 14450 30600 24650 22950
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    OFF ROAD PURPOSES HARD IMPROVED SURFACE
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD762
    		29.5-25
    		28 TL 207 / A2 25.00/3.5 25.00/3.5 IF (2) 1873 750 825 5432 62 28000 17500 14875 31500 25375 23625
    LD764
    		29.5-25
    		32 TL 210 / A2 25.00/3.5 25.00/3.5 IF (2) 1873 750 825 5432 69 30400 19000 16150 34200 27550 25650

    SM-70 (L3)

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		OFF ROAD PURPOSES HARD IMPROVED SURFACE
    SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD685
    		26.5-25 32 TL 206/ A2 22.00/3.0 22.00/3.0 IF (2) 1798 673 794 5214 80 27200 17000 14450 30600 24650 22950
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		OFF ROAD PURPOSES HARD IMPROVED SURFACE
    SPEED (KM/H)
    STATIC 10 25 STATIC 5 10
    LD687
    		29.5-25 28 TL 207/ A2 25.00/3.5 25.00/3.5 IF (2) 1921 750 825 5432 62 28000 17500 14875 31500 25375 23625

    SM-70 (L4)

    Detail
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (bar/psi)
    		3,5 / 51 4/58 4,5 / 65 5/73 5,75 / 83
    LR102
    		17.5 R25 yldz TL 182 /A2 167  / B 14.00/1.5 14.00/1.3 (DC) 1348 442 583 4025 10 km/h ** 6.250 6.700 7.350 7.925 8.500
    LR102
    		17.5 R25 yldz TL 182 /A2 167 / B 14.00/1.5 13.00/1.4 (DC) 1348 442 583 4025 50 km/h *** 4.470 5.000 5.450 - -
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (bar/psi)
    		3,5 / 51 4/58
    		4,5 / 65 5/ 73
    		5,75 / 83
    LR302
    		20.5 R25
    		yldz TL 193 /A2 177  / B 17.00/2.0 17.00/2.0 IF 1484 550 652 4408 10 km/h ** 8.450 9.200 9.950 10.700 11.500
    LR302
    		20.5 R25
    		yldz TL 193 /A2 177  / B 17.00/2.0 17.00/2.0 IF 1484 550 652 4408 50 km/h *** 6.000 6.700 7.300 - -
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (bar/psi)
    		3,5 / 51 4/58
    		4,5 / 65 5/ 73
    		5,75 / 83
    LR402
    		23.5 R25
    		yldz TL 201 /A2 185  / B 19.50/2.5 19.50/2.5 IF 1611 630 711 4804 10 km/h ** 10.650 11.750 12.750 13.600 14.500
    LR402
    		23.5 R25
    		yldz TL 201 /A2 185  / B 19.50/2.5 19.50/2.5 IF 1611 630 711 4804 50 km/h *** 7.500 8.500 9.250 - -
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (bar/psi)
    		3,5 / 51 4/58
    		4,5 / 65 5/ 73
    		5,75 / 83
    LR502
    		26.5 R25
    		yldz TL 209 /A2 193  / B 22.00/3.0 22.00/3.0 IF 1755 705 772 5195 10 km/h ** 13.600 15.000 16.150 17.350 18.500
    LR502
    		26.5 R25
    		yldz TL 209 /A2 193  / B 22.00/3.0 22.00/3.0 IF 1755 705 772 5195 50 km/h *** 9.500 10.500 11.500 - -
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (bar/psi)
    		3,5 / 51 4/ 58 4,5 / 65 5/ 73 5,75 / 83
    LR602
    		29.5 R25
    		yldz TL 216 /A2 200  / B 25.00/3.5 25.00/3.5 IF 1861 776 811 5546 10 km/h ** 16.450 18.150 19.550 21.000 22.400
    LR602
    		29.5 R25
    		yldz TL 216 /A2 200  / B 25.00/3.5 25.00/3.5 IF 1861 776 811 5546 50 km/h *** 11.500 12.750 14.000 - -

    StxRD31 (L3/E3) Radial

    Detail
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX Compound Code RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) INFLATING PRESSURE (bar/psi) 3,5 / 51 4,0 / 58 4,5 / 65 5,0 / 74 5,75 / 84
    LR408
    		23.5 R25 yldz TL 201 A2 / 185 B
    		3 STD 19.50/2.5
    		19.50/2.5 IF
    		1611
    		630
    		711
    		4804
    		10 km/h ** 10.650
    		11.750
    		12.750
    		13.600
    		14.500
    50 km/h *** 7.500
    		8.500
    		9.250
    		- -
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX Compound Code RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) INFLATING PRESSURE (bar/psi) 3,5 / 51 4,0 / 58 4,5 / 65 5,0 / 74 5,75 / 84
    LR507
    		26.5 R25 yldz TL 209 A2 / 193 B
    		3 STD 22.00/4.0
    		22.00/4.0 IF
    		1755 705 772 5195 10 km/h ** 14.600 15.000 16.150 17.450 18.500
    50 km/h *** 9.500 10.500 11.500 - -
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX Compound Code RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) INFLATING PRESSURE (bar/psi) 3,5 / 51 4,0 / 58 4,5 / 65 5,0 / 74 5,75 / 84

    		29.5 R25
    		yldz TL 216 A2 / 200 B
    		3 STD 25.00/4.5
    		25.00/4.5 IF
    		1861 776 811 5546 10 km/h ** 16.450 18.150 19.550 21.000 22.400
    50 km/h *** 11.500 12.750 14.000 - -

    StxHD41 (E4/L4) Radial

    Detail
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX Compound Code RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) INFLATING PRESSURE (bar/psi) 3,5 / 51 4,00 / 58 4,50 / 65 5,00 / 73 5,75 / 84
    LR506
    		26.5 R25
    		yldz TL 209 / A2
    		5 STD 22.00/4.0
    		22.00/4.0 IF
    		1755
    		705
    		772
    		5195
    		10 km/h ** 14.600
    		15.000
    		16.150
    		17.450
    		18.500
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX Compound Code RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) INFLATING PRESSURE (bar/psi) 3,5 / 51 4,00 / 58 4,50 / 65 5,00 / 73 5,75 / 84
    LR606
    		29.5 R25 yldz TL 216 / A2 5 STD 25.00/4.5
    		25.00/4.5 IF
    		1861
    		776
    		811
    		5546
    		10 km/h ** 16.450 18.150 19.550 21.000 22.400

    StxTD41 (L4) Radial

    Detail
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (bar/psi)

    3

    /

    44

    3,5

    /

    51

    4

    /

    58

    4,5

    /

    65

    5

    /

    73

    5,75

    /

    83
    LR210
    		17.5 R25
    		tek TL 176 A2 / 153 A8
    		14.00/1.5

    14.00/1.3 (DC)

    13.00/1.4 (DC)

    		 1348 442 583 4025 10 km/h ** - 5,600 6,000 6,500 7,100 -
    40 km/h
    		3,650 - - - - -

    StxRD31 (L3/G3) Radial

    Detail

    EARTHMOVER

    MANUFACTURER CODE TIRE SIZE PR TT/
    TL    		 LOAD / SPEED
    INDEX    		 RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE (KG)
    RECOM.
    (INCHES)    		 PERMITTED (INCHES) OUTER
    DIAMETER
    (MM)    		 SECTION
    WIDTH
    (MM)    		 STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    30 40 45h 50 55 60 65
    EM700
    		14.00-24 16 TT 153 / D 10.00 VA 10.00 ; 9.00 ; 9.00V 1360 375 613 3944 61 4455 4345 4310 4235 4125 3945 3620
    EM703
    		14.00-24 20 TL 157 / D 10.00 VA 10.00 ; 9.00 ; 9.00V 1360 375 613 3944 69 5045 4920 4880 4800 4675 4470 4100
    EM704
    		14.00-24 24 TT 160 / D 10.00 VA 10.00 ; 9.00 ; 9.00V 1360 375 613 3944 83 5570 5435 5390 5300 5165 4940 4530
    EM706
    		14.00-24 28 TT 168 / D 10.00 VA 10.00 ; 9.00 ; 9.00V 1360 375 613 3944 94 6890 6720 6665 6550 6385 6105 5600
    EM707
    		14.00-24 28 TL 168 / D 10.00 VA 10.00 ; 9.00 ; 9.00V 1360 375 613 3944 94 6890 6720 6665 6550 6385 6105 5600
    EM708
    		14.00-24 32 TT 170 / D 10.00 VA 10.00 ; 9.00 ; 9.00V 1360 375 613 3944 105 7380 7200 7140 7020 6840 6540 6000
    EM709
    		14.00-24 32 TL 170 / D 10.00 VA 10.00 ; 9.00 ; 9.00V 1360 375 613 3944 105 7380 7200 7140 7020 6840 6540 6000

    SM-E3

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    15 20 25 30 35 40 50
    EM744
    		16.00-25 32 TL 177 / B 11.25/2.0 11.25/2.0 IF (2) ; 13.00/2.0 1493 432 670 4330 94 8175 8030 7885 7740 7595 7520 7300
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    15 20 25 30 35 40 50
    EM754
    		18.00-25 32 TL 183/ B 13.00/2.5 13.00(2.5 IF (2) ; 15.00/2.5 1615 498 719 4684 83 9800 9625 9450 9275 9100 9015 8750
    EM756
    		18.00-25 40 TL 187/ B 13.00/2.5 13.00(2.5 IF (2) ; 15.00/2.5 1615 498 719 4684 102 10920 10725 10530 10335 10140 10045 9750
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    15 20 25 30 35 40 50
    EM762
    		18.00-33 32 TL 188/ B 13.00/2.5 - 1818 498 821 5272 83 11200 11000 10800 10600 10400 10300 10000

    SM-60 (E-3)

    Detail
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (bar/psi)
    		3,5 / 51 4/58 4,5 / 65 5/73 5,75 / 83
    LR102
    		17.5 R25 yldz TL 182 /A2 167  / B 14.00/1.5 14.00/1.3 (DC) 1348 442 583 4025 10 km/h ** 6.250 6.700 7.350 7.925 8.500
    LR102
    		17.5 R25 yldz TL 182 /A2 167 / B 14.00/1.5 13.00/1.4 (DC) 1348 442 583 4025 50 km/h *** 4.470 5.000 5.450 - -
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (bar/psi)
    		3,5 / 51 4/58
    		4,5 / 65 5/ 73
    		5,75 / 83
    LR302
    		20.5 R25
    		yldz TL 193 /A2 177  / B 17.00/2.0 17.00/2.0 IF 1484 550 652 4408 10 km/h ** 8.450 9.200 9.950 10.700 11.500
    LR302
    		20.5 R25
    		yldz TL 193 /A2 177  / B 17.00/2.0 17.00/2.0 IF 1484 550 652 4408 50 km/h *** 6.000 6.700 7.300 - -
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (bar/psi)
    		3,5 / 51 4/58
    		4,5 / 65 5/ 73
    		5,75 / 83
    LR402
    		23.5 R25
    		yldz TL 201 /A2 185  / B 19.50/2.5 19.50/2.5 IF 1611 630 711 4804 10 km/h ** 10.650 11.750 12.750 13.600 14.500
    LR402
    		23.5 R25
    		yldz TL 201 /A2 185  / B 19.50/2.5 19.50/2.5 IF 1611 630 711 4804 50 km/h *** 7.500 8.500 9.250 - -
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (bar/psi)
    		3,5 / 51 4/58
    		4,5 / 65 5/ 73
    		5,75 / 83
    LR502
    		26.5 R25
    		yldz TL 209 /A2 193  / B 22.00/3.0 22.00/3.0 IF 1755 705 772 5195 10 km/h ** 13.600 15.000 16.150 17.350 18.500
    LR502
    		26.5 R25
    		yldz TL 209 /A2 193  / B 22.00/3.0 22.00/3.0 IF 1755 705 772 5195 50 km/h *** 9.500 10.500 11.500 - -
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (bar/psi)
    		3,5 / 51 4/ 58 4,5 / 65 5/ 73 5,75 / 83
    LR602
    		29.5 R25
    		yldz TL 216 /A2 200  / B 25.00/3.5 25.00/3.5 IF 1861 776 811 5546 10 km/h ** 16.450 18.150 19.550 21.000 22.400
    LR602
    		29.5 R25
    		yldz TL 216 /A2 200  / B 25.00/3.5 25.00/3.5 IF 1861 776 811 5546 50 km/h *** 11.500 12.750 14.000 - -

    StxRD31 (L3/E3) Radial

    Detail
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX Compound Code RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) INFLATING PRESSURE (bar/psi) 3,5 / 51 4,0 / 58 4,5 / 65 5,0 / 74 5,75 / 84
    LR408
    		23.5 R25 yldz TL 201 A2 / 185 B
    		3 STD 19.50/2.5
    		19.50/2.5 IF
    		1611
    		630
    		711
    		4804
    		10 km/h ** 10.650
    		11.750
    		12.750
    		13.600
    		14.500
    50 km/h *** 7.500
    		8.500
    		9.250
    		- -
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX Compound Code RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) INFLATING PRESSURE (bar/psi) 3,5 / 51 4,0 / 58 4,5 / 65 5,0 / 74 5,75 / 84
    LR507
    		26.5 R25 yldz TL 209 A2 / 193 B
    		3 STD 22.00/4.0
    		22.00/4.0 IF
    		1755 705 772 5195 10 km/h ** 14.600 15.000 16.150 17.450 18.500
    50 km/h *** 9.500 10.500 11.500 - -
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX Compound Code RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) INFLATING PRESSURE (bar/psi) 3,5 / 51 4,0 / 58 4,5 / 65 5,0 / 74 5,75 / 84

    		29.5 R25
    		yldz TL 216 A2 / 200 B
    		3 STD 25.00/4.5
    		25.00/4.5 IF
    		1861 776 811 5546 10 km/h ** 16.450 18.150 19.550 21.000 22.400
    50 km/h *** 11.500 12.750 14.000 - -

    StxHD41 (E4/L4) Radial

    Detail
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (bar/psi)

    3

    /

    44

    3,5

    /

    51

    4

    /

    58

    4,5

    /

    65

    5

    /

    73

    5,75

    /

    83
    LR210
    		17.5 R25
    		tek TL 176 A2 / 153 A8
    		14.00/1.5

    14.00/1.3 (DC)

    13.00/1.4 (DC)

    		 1348 442 583 4025 10 km/h ** - 5,600 6,000 6,500 7,100 -
    40 km/h
    		3,650 - - - - -

    StxRD31 (L3/G3) Radial

    Detail
    MANUFACTURER CODE
    		TIRE SIZE
    		STAR RATING
    		TT / TL LOAD / SPEED INDEX
    		RIM
    		INFLATED DIMENSIONS (NO LOAD)
    		STATIC LOADED RADIUS (MM)
    		DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		NFLATING PRESSURE (bar/psi)
    		LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES)
    		PERMITTED (INCHES)
    		OUTER DIAMETER (MM)
    		SECTION WIDTH (MM)
    		30 km/h 40 km/h 50 km/h 65 km/h 70 km/h 80 km/h* 90 km/h 100 km/h
    8021 445/95 R25 *** TL 174 / F 11.25x25 11.25/2.0
    11.00/1.7 CR
    11.00/1.7 CRL
    13.00/2.0
    635x280-CR
    		1494 464 608 4.437 131 8375 7705 7505 7205 7035 6700 6300 5920

    StxCD21 (E-2)

    Detail

    GRADER

    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    15 20 25 30 35 40 50
    GR014
    		13.00-24 12 TT 143 / A8 8.00 TG SDC 9.00/1.5 (DC) (1) ; 10.00/VA SDC 1278 333 579 3706 44 3080 2970 2890 2835 2780 2725 2480
    GR015
    		13.00-24 12 TL 143/ A8 8.00 TG SDC 9.00/1.5 (DC) (1) ; 10.00/VA SDC 1278 333 579 3706 44 3080 2970 2890 2835 2780 2725 2480
    GR037
    		13.00-24 16 TL 151/ A8 8.00 TG SDC 9.00/1.5 (DC) - 10.00/VA SDC 1278 333 579 3706 51 3900
    		3760
    		3660
    		3560
    		3520
    		3450 3140
    GR038
    		13.00-24 16 TL 151/ A8 8.00 TG SDC 9.00/1.5 (DC) - 10.00/VA SDC 1278 333 579 3706 51 3900
    		3760
    		3660
    		3560
    		3520
    		3450 3140
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) SPEED (KM/H)
    15 20 25 30 35 40 50
    GR016
    		14.00-24 16 TT 153/ A8 8.00 TG SDC 9.00/1.5 (DC) (1) ; 10.00/VA SDC 1348 362 608 3909 54 4125 3980 3870 3800 3725 3650 3325
    GR017
    		14.00-24 20 TL 153/ A8 8.00 TG SDC 9.00/1.5 (DC) (1) ; 10.00/VA SDC 1348 362 608 3909 54 4125 3980 3870 3800 3725 3650 3325

    SG-200 (G2)

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    15 20 25 30 35 40 50
    GR050
    		16.00-24 16 TL 160 / A8 10.00VA SDC - 1459 427 653 4231 47 5085 4905 4770 4680 4590 4500 4095

    SG-300 (G2)

    Detail
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    20 30 40 50
    LR198
    		14.00 R24 tek TL 153 / A8 8.00 TG SDC 9.00/1.5 (DC) ; 10.00/VA SDC 1348 364 608 3909 54 3650 3650 3650 3322


    StxRD22 (G2) Radial

    Detail
    MANUFACTURER CODE TIRE SIZE STAR RATING TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) SPEED (KM/H)

    LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		INFLATING PRESSURE (psi)

    6

    /

    87

    6.25

    /

    91

    6.5

    /

    94

    6.75

    /

    98

    7

    /

    102

    7.25

    /

    105

    7.5

    /

    109

    7.75

    /

    112

    8

    /

    116

    8.25

    /

    120

    8.5

    /

    123

    8.75

    /

    127

    9

    /

    131

    9.25

    /

    134

    9.5

    /

    138
    LR200
    		14.00 R24 TL 188A2/ 169B
    		10.00/1.5

    10.00W

    9.0

    9.00V

    9.00/1.5 (DC)

    		 1368 375 608 4042 10 km/h **
    		7,500 7,675 7,850 8,025 8,200 8,375 8,550 8,725 8,900 9,075 9,250 9,425 9,600 9,775 10,000

    		50 km/h ***
    		4,905 5,025 5,315 5,475 5,800 - - - - -

    StxRD22 (L2/E2) Radial

    Detail

    INDUSTRIAL/(IND)

    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 15 20 25 30 40
    MPT264
    		16.0/70-20 16 TL 156 / A8 13 12SDC ; 13SDC ; 14 1075 418 495 3103 58 5000 4520 4360 4240 4160 4000

    SM-I30

    Detail
    MANUFACTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi/bar)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM) SPEED (KM/H)
    30 40
    MP082
    		11L-16 SL TL 116 / A8 W8L , 8LB W10L, 10LB 800 284 371 2368 64 / 4,4 1385 1250

    TR-45 (F3)

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM)

    		STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP090
    		10.0/75-15.3 12 TL 126 / A8 9.00 - 780 264 355 2262 68 2125 1920 1850 1800 1770 1700 - -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP095
    		11.5/80-15.3 12 TL 135 / A8 9.00 - 867 290 390 2514 59 2725 2460 2375 2310 2265 2180 - -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP322
    		10.5/80-18 12 TL 134 /A8 W9 W8 ; 9.00 907 274 413 2630 54 2650 2395 2310 2245 2205 2120 - -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP312
    		280/80-18 12 TL 134 / A8 W9 W8; W10 905 282 412 2625 54 2650 2395 2310 2245 2205 2120 - -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP291
    		14.5-20
    		14 TL 143 / D 11 11 SDC 1095 355 495 3176 51 4495 4085 3545 3350 3135 2890 2835 2725
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP380
    		405/70-20 14 TL
    		154 / A8 13 12SDC ; 13SDC ; 14 1097 418 496 3181 51 4690
    		4240 4090 3975 3900 3750 - -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP370
    		16.0/70-20 16 TL
    		154 / A8 13 12SDC ; 13SDC ; 14 1097 418 496 3181 51 4690 4240 4090 3975 3900 3750 - -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET294
    		16.0/70-24 14 TL 152 / B 13.00 13 SDC 1178 407 538 3416 51 5800
    		- - - - - 3550
    		-
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10  15  20 25  30  40  50  65
    ET302
    		405/70-24 14 TL 152 / B 13.00 13 SDC 1178 407 538 3416 51 5800
    		- - - - - 3550
    		-
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET302
    		23.1-26
    		14 TL 166 / A8 DW20B - 1580 587 708
    		4582 30 6560 5930 5720 5565 5460 5250 - -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET294
    		480/80-26 12 TL 156 / A8 DW15L DW16L 1428 479 645 4141
    		36 5000 4520 4360 4240 4160 4000 - -

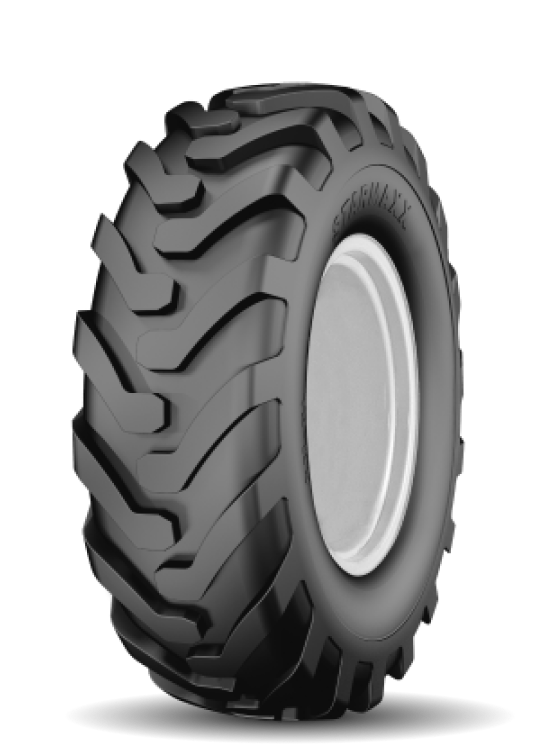

    SM-ND (R4)

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET255
    		16.5/85-24 12 TL 149 / A8 W13L W15L ; W14L 1322 417 597 3834 41 4065 3675 3545 3445 3380 3250 2925 -
    ET260
    		16.5/85-24 16 TL 156 / A8 W13L W15L ; W14L 1322 417 597 3834 54 5000 4520 4360 4240 4160 4000 3600 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET323
    		16.5/85-28 12 TL 152 / A8 W13L W14L ; W15L
    		1423
    		417 680 4127
    		38
    		4440
    		4010
    		3434
    		3760
    		3690
    		3150
    		- -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP205
    		12.5/80-18 14 TL 146 / A8 W9 11.00 987 308 446 2862 62 3750 3390 3270 3180 3120 3000 2700 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP208
    		340/80-18 12 TL 142 / A8 11 W10; W11 1001 343 452 2903 54 3315 2995 2890 2810 2755 2650 2385 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET254
    		440/80-24 12 TL 149 / A8 DW14L DW13; DW13L; DW15L 1314 441 594 3810 38 4065 3675 3545 3445 3380 3250 2925 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET297
    		480/80-26 14 TL 158 / A8 DW15L DW16L 1428 479 647 4141 42 5310 4800 4630 4505 4420 4250 3825 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET323
    		440/80-28 12 TL 152 / A8 DW14L DW13; DW13L; DW15L 1415 441 645 4104 38 4440 4012 3870 3765 3690 3550 3195 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP332
    		16.0/70-20 14 TL 154 / A8 13 12SDC ; 13SDC ; 14 1075 418 495 3103 51 4690 4240 4090 3975 3900 3750 3375 -
    MP340
    		16.0/70-20 16 TL 156 / A8 13 12SDC ; 13SDC ; 14 1075 418 495 3103 58 5000 4520 4360 4240 4160 4000 3600 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP344
    		405/70-20 14 TL 154 / A8 13 12SDC ; 13SDC ; 14 1075 418 495 3103 51 4690 4240 4090 3975 3900 3750 3375 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET256
    		405/70-24 14 TL 152 / B 13.00 13 (DC) - 13 (SDC) 1178 407 542 3405 51 - 3975 3905 3835 3765 3655 3550 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET259
    		16.0/70-24 14 TL 152 / B 13.00 13 (DC) - 13 (SDC) 1178 407 542 3405 51 - 3975 3905 3835 3765 3655 3550 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP334
    		14.5-20
    		14 TT 143 / D 11 11 SDC 1095 355 495 3176 51 4495 4085 3545 3350 3135 2890 2835 2725
    MP330
    		14.5-20
    		14 TL 143 / D 11 11 SDC 1095 355 495 3176 51 4495 4085 3545 3350 3135 2890 2835 2725
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    MP295
    		16.9-24
    		12 TL 149 / A8 DW15L DW14L 1310 429 592 3799 38 4065 3675 3545 3445 3380 3250 2925 -
    MP296
    		16.9-24
    		14 TL 152 / A8 DW15L DW14L 1310 429 592 3799 43 4440 4010 3870 3760 3690 3550 3195 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET262
    		19.5L-24 12 TL 151 / A8 DW16A - 1314 495 594 3810 34 4315 3890 3760 3655 3590 3450 3105 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET326
    		18.4-26
    		12 TL 156 / A8 DW16L DW15L 1425 467 644 4133 36 5000 4520 4360 4240 4160 4000 3600 -
    ET291
    		18.4-26
    		14 TL 158 / A8 DW16L DW15L 1425 467 644 4133 42 5310 4800 4630 4505 4420 4250 3825 -
    ET295
    		18.4-26
    		16 TL 160 / A8 DW16L DW15L 1425 467 644 4133 48 5625 5085 4905 4770 4680 4500 4050 -
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h 50 km/h 65 km/h
    ET315
    		16.9-28
    		12 TL 152 / A8 DW15L DW14L 1410 429 643 4089 38 4440 4012 3870 3765 3690 3550 3195 -
    ET317
    		16.9-28
    		14 TL 156 / A8 DW15L DW14L 1410 429 643 4089 44 5000 4520 4360 4240 4160 4000 3600 -

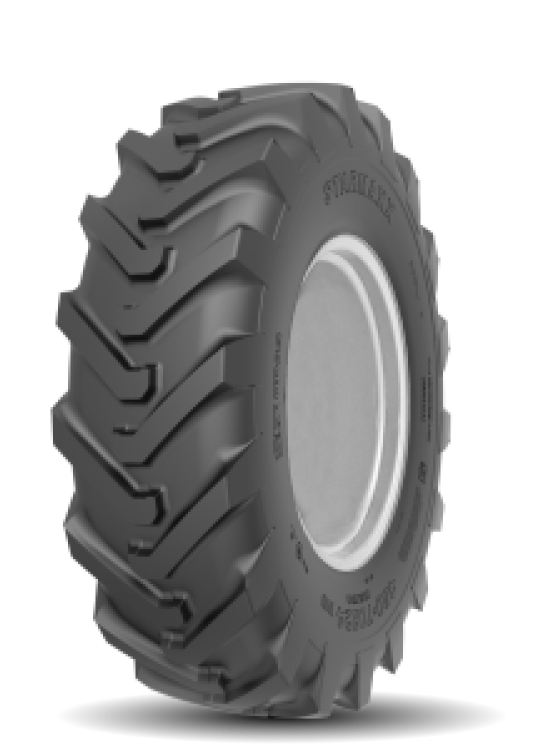

    SM-I25 (R4)

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER(MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		FREE ROLLING DRIVE WHEEL
    40 km/h
    ET240
    		15.5/80-24 R/F 12 TL 157-145 / A8 W12 W13, W14L 1262 394 573 3660 43 4125 2900
    ET242
    		15.5/80-24 R/F 16 TL 163-151 / A8 W12 W13, W14L 1262 394 573 3660 58 4875 3450

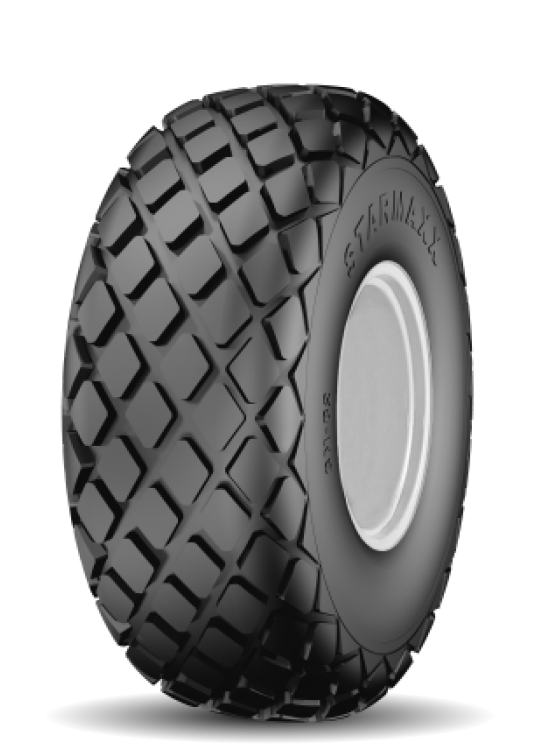

    TR-60 (I3)

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h
    ET300
    		18.4-26
    		14 TL 145 / A8 W16L W15L 1450 467 647 4321 40 4060 3857 3654 3451 3248 2900
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h 40 km/h
    ET296
    		16.9-30
    		14 TL 153 / A8 W15L W14L 1485 429 677 4307 42 5250 5000 4700 4450 4200 3650

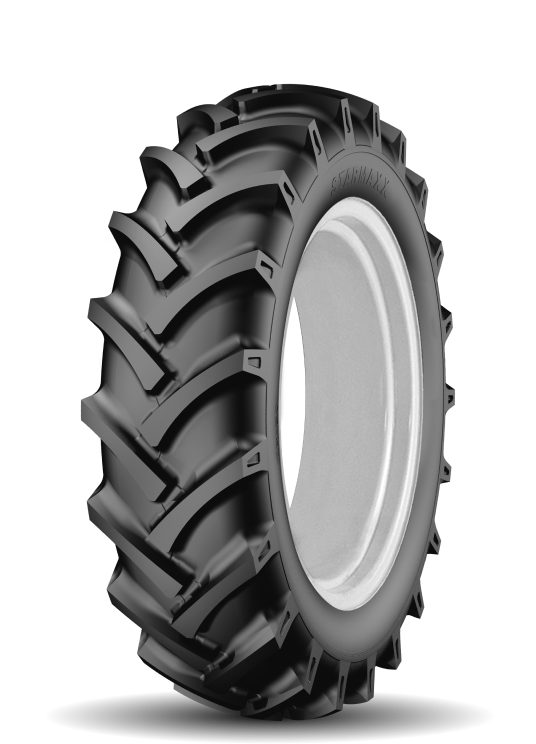

    SM-5 (R1)

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    15 km/h 20 km/h 25 km/h 30 km/h 35 km/h 40 km/h 50 km/h
    GR040
    		15.5-25
    		12 TL 149 / B 12.00/1.3 12.00/1.3 (DC) (1) 1277 394 581 3703 36 3640 3575 3510 3445 3380 3350 3250

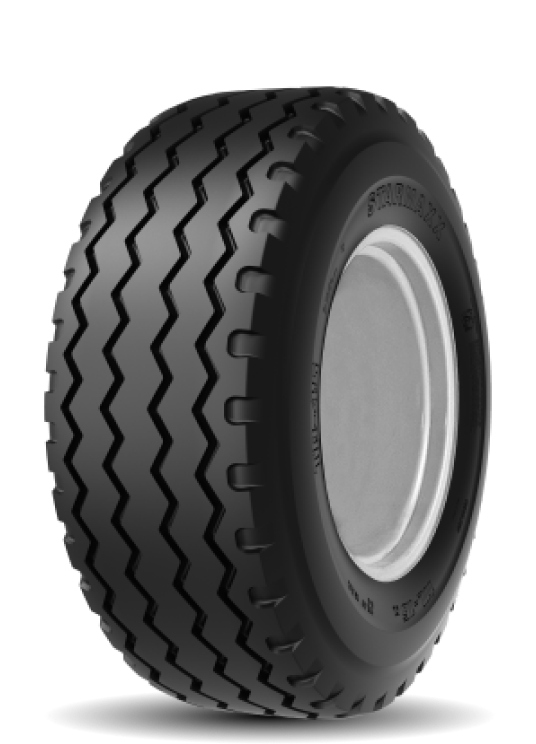

    SM-PL

    Detail
    MANUFACTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    10 km/h 25 km/h 30 km/h 40 km/h 50 km/h
    KR316
    		460/70 R24
    (17.5LR24)
    		TL 159 A8/B
    		DW15L
    		DW14L ; DW16L
    		1244,6
    		461
    		555,6
    		3740
    		58
    		5470
    		4855
    		4680
    		4375
    		4375

    StxND33 (R4) Radial

    Detail
    MANUFACTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)) SPEED (KM/H)
    10 km/h 25 km/h 30 km/h 40 km/h 50 km/h
    KR195
    		340/80 R18 (12.5/80 R18) TL 143 A8/B 11 W10, 11SDC, W11, 995 345 446 2975 58 3405 3025 2915 2725 2725
    MANUFACTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    10 km/h 25 km/h 30 km/h 40 km/h 50 km/h
    KR100
    		340/80 R20 (12.5 R20) TL 138A8/B 11 12.00, 11SDC, 12SDC 1052 343 477 3145 46 2950 2570 2455 2360 2360
    KR120
    		340/80 R20 (12.5 R20) TL 144A8/B 11 12.00, 11SDC, 12SDC 1052 343 477 3145 58 3500 3050 2910 2800 2800
    MANUFACTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    10 km/h 25 km/h 30 km/h 40 km/h 50 km/h
    KR200
    		480/80 R26 (18.4 R26) TL 167 A8/B DW15L DW16L 1428 479 645 4253 58 6810 5940 5670 5450 5450
    MANUFACTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    10 km/h 25 km/h 30 km/h 40 km/h 50 km/h
    KR305
    		440/80 R28 (16.9R28) TL 156 A8/B DW14L DW13, DW13L DW15L 1415 441 636 4215 46 5000 4440 4280 4000 4000
    KR420

    440/80 R28

    (16.9R28)


    		 TL
    		156 A8/B
    		DW14L
    		DW13, DW13L DW15L
    		1435
    		442
    		645
    		4261
    		46
    		5000
    		4440
    		4280
    		4000
    		4000
    MANUFACTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    10 km/h 25 km/h 30 km/h 40 km/h 50 km/h
    KR122
    		400/70 R20 TL 149 A8/B 13 12SDC, 13SDC, 14 1068 404 480 3194 58 4065 3610 3480 3250 3250
    MANUFACTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    10 km/h 25 km/h 30 km/h 40 km/h 50 km/h
    KR400
    		405/70 R20 TL 149 A8/B 13 12SDC, 13SDC, 14 1070 414 480 3200 58 4065 3610 3480 3250 3250
    MANUFACTURER CODE TIRE SIZE TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC ROLLING CIRCUMFERENCE (MM)
    		SPEED (KM/H)
    10 km/h 25 km/h 30 km/h 40 km/h 50 km/h
    KR442
    		460/70 R24 (17.5L R24) TL 159 A8/B DW15L DW14L DW16L 1251 453 562 3740 58 5470 4855 4680 4375 4375

    StxND31 (R4) Radial

    Detail

    COMPACTOR

    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    40 km/h 50 km/h
    FT760 23.1-26 12 TL 162 / A8 DW20 - 1580 587 708 4582 28 4750 4325
    N/A 23.1-26* 10 TT 158 / A8 DW20 - 1580 587 708 4582 25 4250 3870
    FT761 23.1-26 14 TL 166 / A8 DW20 - 1580 587 708 4582 28 5300 4825



    *Upon Request

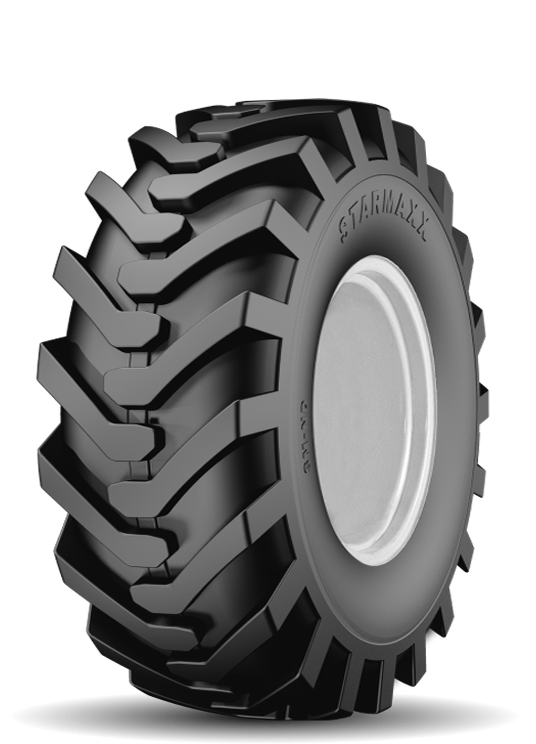

    SM-S2 (R3)

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/
    TL    		 LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE
    (KG)
    RECOM.
    (INCHES)    		 PERMITTED (INCHES) OUTER
    DIAMETER
    (MM)    		 SECTION
    WIDTH
    (MM)    		 STATIC
    LOADED
    RADIUS
    (MM)    		 DYNAMIC
    ROLLING
    CIRCUMFERENCE (MM)
    N/A
    		11.00-20 14 TT 165 / A2 9.0,9.00V 8.0V,8.5,10.0 1048 326 476 3039 94 5120
    MANUFACTURER CODE TIRE SIZE PR TT/
    TL    		 LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE
    (KG)
    RECOM.
    (INCHES)    		 PERMITTED (INCHES) OUTER
    DIAMETER
    (MM)    		 SECTION
    WIDTH
    (MM)    		 STATIC
    LOADED
    RADIUS
    (MM)    		 DYNAMIC
    ROLLING
    CIRCUMFERENCE (MM)
    N/A
    		13.0/80 R20 - TL 164 / A3 8.0,B8.0,8.0V 7.33V,7.5,B7.5,7.5V,8.37V 1070 291 785 3103 131 5000

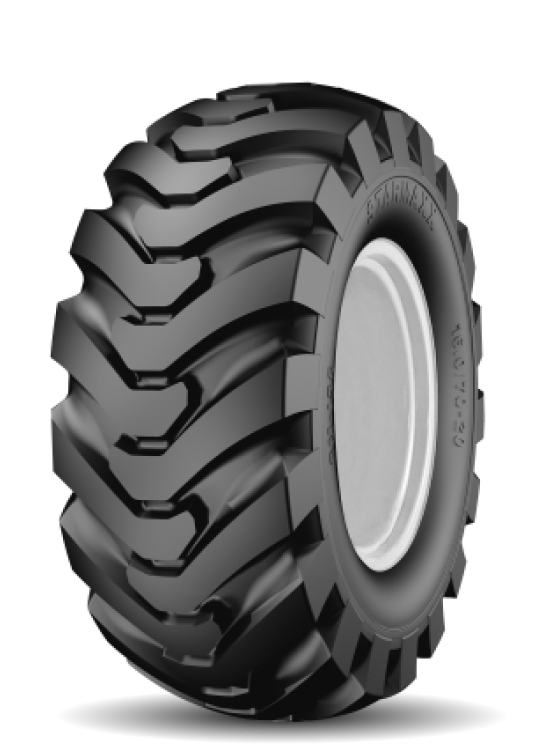

    SM-C1

    Detail

    SKID STEER

    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h
    MP110
    		10-16.5 NHS 8 TL 131 / A3 8,25 - 773 264 356 2242 54 2090 1950 1795 1660 1520
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h
    MP120
    		12-16.5 NHS 10 TL 142 / A3 9,75 - 831 307 378 2410 65 2835 2650 2440 2255 2065

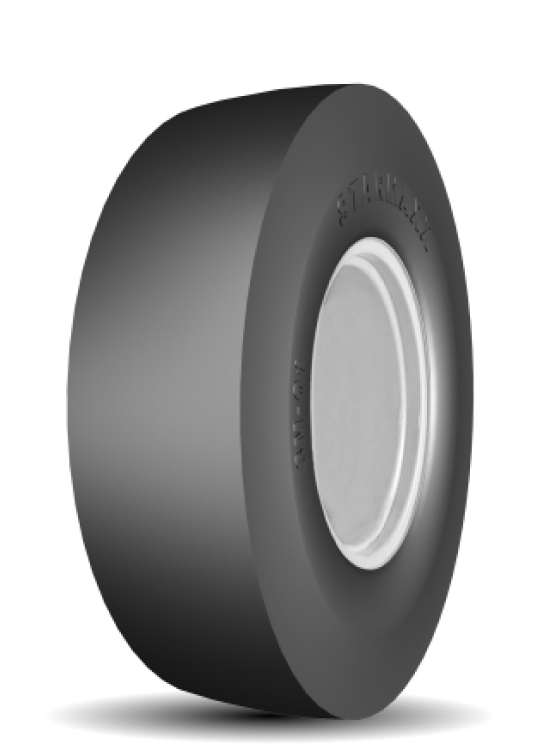

    SM-ND NHS

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h
    MP112
    		10-16.5 NHS 12 TL 138 / A3 8,25 - 799 260 365 2318 90 2525 2360 2170 2005 1840
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h
    MP122
    		12-16.5 NHS 14 TL 147 / A3 9,75 - 870 307 394 2520 90 3290 3075 2830 2610 2400

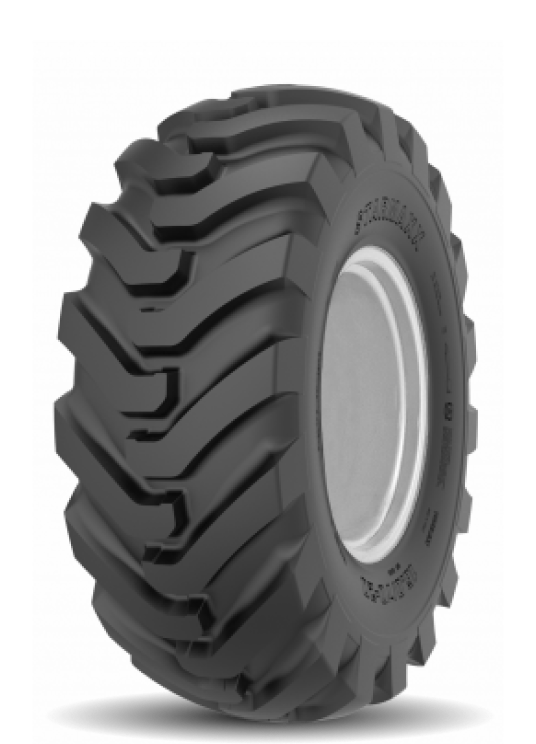

    SM-135

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h

    		10-16.5 NHS 12 TL 138 / A3 8,25 - 801
    		260 365 2378
    		90 2525 2360 2170 2005 1840
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SPEED (KM/H)
    10 km/h 15 km/h 20 km/h 25 km/h 30 km/h

    		12-16.5 NHS 14
    		TL 147 / A3
    		9,75
    		- 855
    		303
    		388
    		2539
    		90
    		3290
    		3075
    		2830
    		2610
    		2400

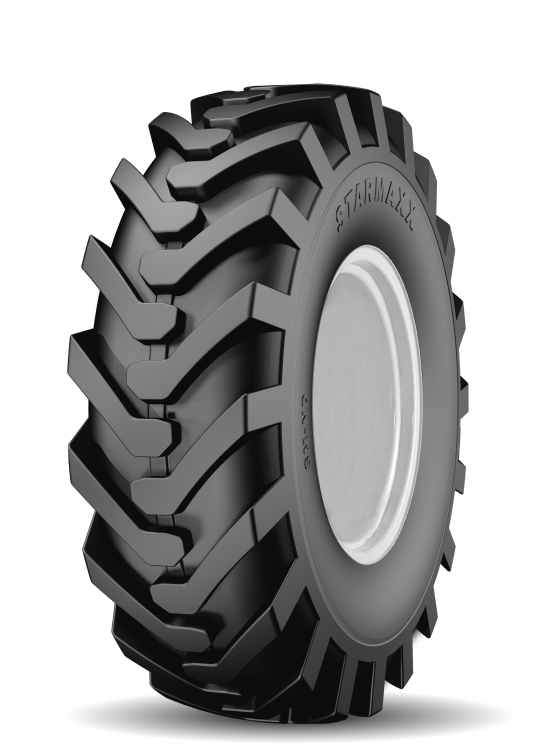

    SM-I40 NHS

    Detail

    EXCAVATOR

    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi)
    		LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SINGLE AXE USAGE KG DOUBLE AXE USAGE KG
    50 km/h
    MP240
    		7.50-20 10 TT 123/122 - B 5.50F 6.00F 904 214 417 2622 58 1550 1500
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SINGLE AXE USAGE KG DOUBLE AXE USAGE KG
    50 km/h
    MP252
    		9.00-20 14 TT 140/137 - B 7.00 6.5 ; 7.5 1036 230 471 3004 62 2500 2300
    MANUFACTURER CODE TIRE SIZE PR TT/TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE(KG)
    RECOM.(INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH MIN-MAX STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) SINGLE AXE USAGE KG DOUBLE AXE USAGE KG
    50 km/h
    MP271
    		10.00-20 16 TT 146/143 - B 7.50
    		7.0 ; 8.0 1060 270 481 3074 109 3000 2725

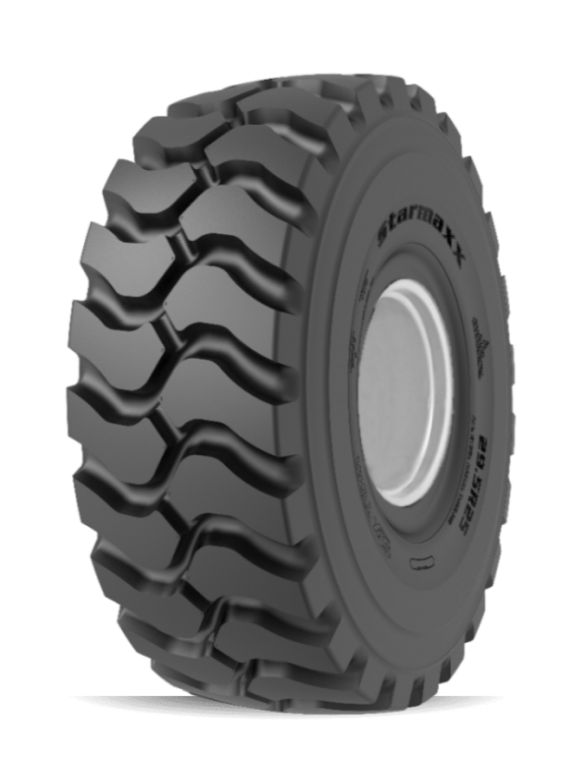

    SM-38 (E3)

    Detail

    PORT APPLICATION

    MANUFACTURER CODE TIRE SIZE PR TT/ TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    RECOM. PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADEDRADIUS (MM) DYNAMICRADIUS CIRCLE (MM) OFF ROAD PURPOSES HARD IMPROVED SURFACE
    (INCHES) SPEED (KM/H)

    		STATIC 10 15 20 25 30
    EM750
    		18,00-25
    free axle    		 40 TL 207/A5 13.00/2.5 13.00(2.5 IF (2) ; 15.00/2.5 1673 498 743 4852 145 25200 18900 18200 17850 17500 16975
    EM750
    		18,00-25
    drive axle    		 40 TL 207/A5 13.00/2.5 13.00(2.5 IF (2) ; 15.00/2.5 1673 498 743 4852 145 31500 23625 22750 22225 21875 21350

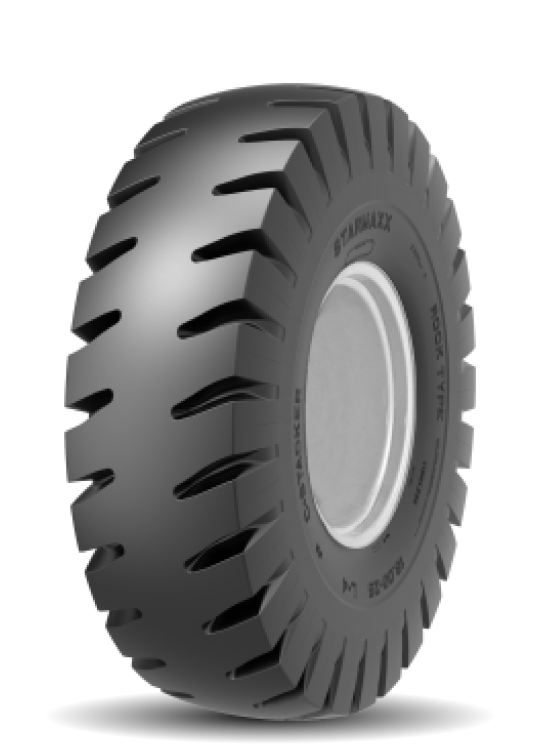

    C+STACKER (IND-4)

    Detail
    MANUFACTURER CODE TIRE SIZE PR TT/ TL LOAD / SPEED INDEX RIM INFLATED DIMENSIONS (NO LOAD) INFLATED DIMENSIONS (W/ LOAD) INFLATING PRESSURE (psi) LOAD CAPACITY PER TIRE (KG)
    RECOM. (INCHES) PERMITTED (INCHES) OUTER DIAMETER (MM) SECTION WIDTH (MM) STATIC LOADED RADIUS (MM) DYNAMIC RADIUS CIRCLE (MM) OFF ROAD PURPOSES HARD IMPROVED SURFACE
    SPEED (KM/H)
    STATIC 10 15 20 25 30
    EM752
    		18,00-25
    free axle    		 40 TL 207 / A5 13.00/2.5 13.00(2.5 IF (2) ; 15.00/2.5 1673 498 743 4852 145 25200 18900 18200 17850 17500 16975
    EM752
    		18,00-25
    drive axle    		 40 TL 207 / A5 13.00/2.5 13.00(2.5 IF (2) ; 15.00/2.5 1673 498 743 4852 145 31500 23625 22750 22225 21875 21350

    C+STACKER SMOOTH (IND-4)

    Detail
