DZ300 is drive axle (traction) pattern designed for light commercial trucks and busses. Having 3PMSF and M+S, DZ300 provides exceptional grip and braking on snowy roads. Delivers high mileage thanks to its special compound.

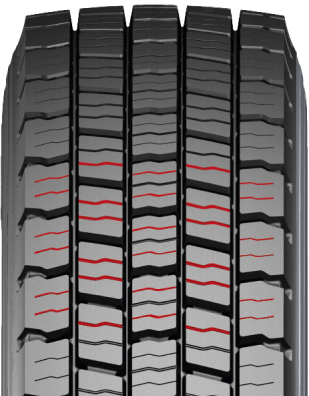

The sipes between the blocks offer enhanced traction, shortened brake distance and excellent wet grip.
Circumferential and lateral grooves ensure quick and effective water discharge.
All steel construction and specifically designed low profile structure meet all highway usage criteria.
Interconnected blocks improves longevity.
Special belt construction and optimized footprint offer long life and provides resistance against irregular wear.
Provides long life and resistance to irregular wear thanks to its special belt construction, optimized footprint and rigid shoulders.
Optimized tread depth provides increases the tire’s durability and lifespan.
| MANUFACTURER CODE | TIRE SIZE | LOAD / SPEED
INDEX |
LOAD CAPACITY | SPEED LIMIT | RIM DIAMETER (Inch) | INFLATED DIMENSIONS (mm) | INFLATED PRESSURE | M+S | SNOW FLAKE | EU TIRE LABEL | ||||||||
| SINGLE | DUAL | RECOMMENDED | PERMITTED | SECTION WIDTH | OUTER DIAMETER | psi | kPA | ROLLING RESISTANCE | WET GRIP | NOISE dB | NOISE LEVEL | lbldwn | ||||||
| 80202 | 8.5 R17.5 | 121/120 L | 2900 | 5600 | 120 | 6,00 | 5,25, 6,75 | 214 | 804,5 | 91 | 625 | ü | ü | E | B | 74 | B | LABEL |
| 80302 | 215/75 R17.5 | 126/124 M | 3400 | 6400 | 130 | 6,00 | 6,75 | 216 | 775 | 102 | 700 | ü | ü | E | B | 74 | B | LABEL |
| 80352 | 225/75 R17.5 | 129/127 M | 3700 | 7000 | 130 | 6,75 | 6,00 | 230 | 791 | 105 | 725 | ü | ü | E | B | 74 | B | LABEL |
| 80402 | 235/75 R17.5 | 132/130 M | 4000 | 7600 | 130 | 6,75 | 7,50 | 237 | 803 | 110 | 760 | ü | ü | E | B | 74 | B | LABEL |
| MANUFACTURER CODE | TIRE SIZE | LOAD / SPEED
INDEX |
LOAD CAPACITY | SPEED LIMIT | RIM DIAMETER (Inch) | INFLATED DIMENSIONS (mm) | INFLATED PRESSURE | M+S | SNOW FLAKE | EU TIRE LABEL | ||||||||
| SINGLE | DUAL | RECOMMENDED | PERMITTED | SECTION WIDTH | OUTER DIAMETER | psi | kPA | ROLLING RESISTANCE | WET GRIP | NOISE dB | NOISE LEVEL | lbldwn | ||||||
| 81522 | 245/70 R19.5 | 136/134 M | 4880 | 8480 | 130 | 7,50 | 6,75 | 248 | 842,6 | 123 | 850 | ü | ü | E | B | 74 | B | LABEL |
